2-1445095-6
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

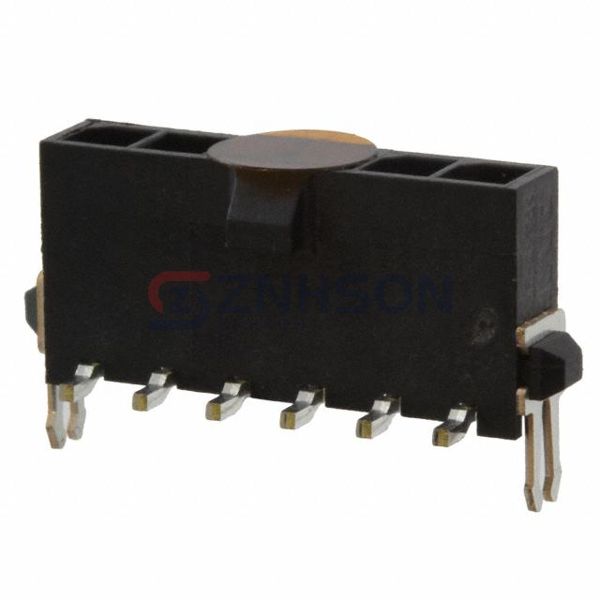

CONN HEADER SMD 6POS 3MM
$1.77
Available to order
Reference Price (USD)
630+
$1.52830
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 2-1445095-6 rectangular connector header from TE Connectivity AMP Connectors, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 2-1445095-6 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.364" (9.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Lock, Pick and Place
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 250V
