1-1658694-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 34POS 2.54MM
$8.44
Available to order
Reference Price (USD)
1+
$6.60000
50+
$5.57860
100+
$5.32480
500+
$4.56418
1,000+
$4.05704
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

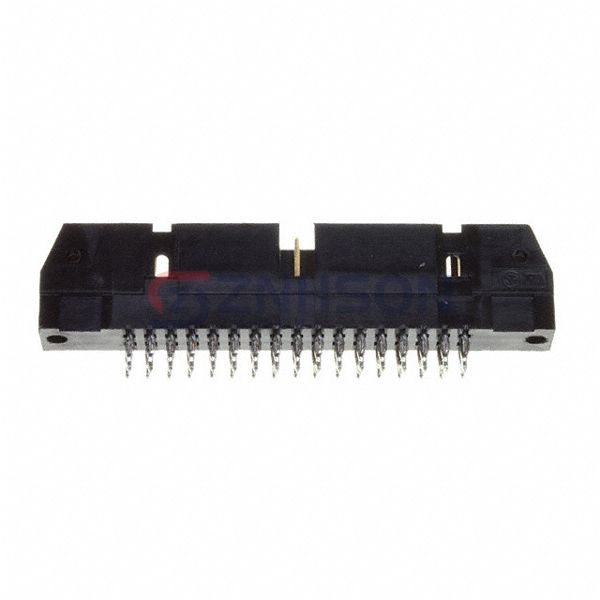

The 1-1658694-1 by TE Connectivity AMP Connectors is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. TE Connectivity AMP Connectors delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 34
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.174" (4.42mm)
- Overall Contact Length: 0.703" (17.86mm)
- Insulation Height: 0.549" (13.94mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold-Palladium
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: -
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: -
