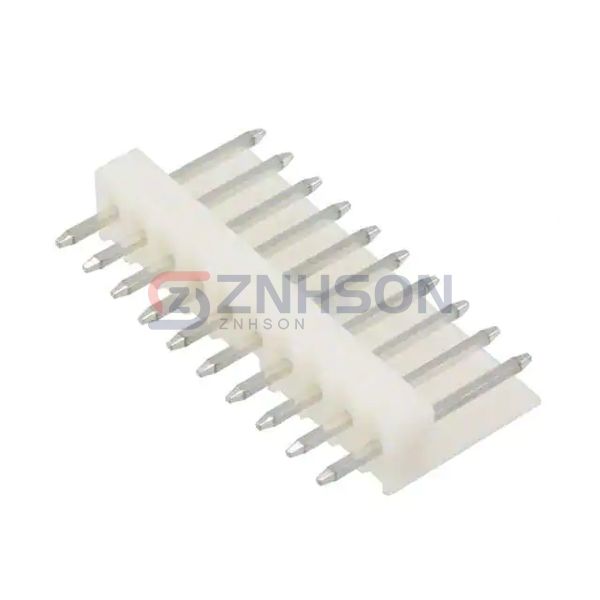

1-171825-0
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 10POS 2.5MM
$1.15
Available to order
Reference Price (USD)
1+
$1.06000
10+
$0.93600
100+
$0.81590
500+
$0.67798
1,000+
$0.60904
5,000+
$0.54009
10,000+
$0.51596
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-171825-0 by TE Connectivity AMP Connectors is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. TE Connectivity AMP Connectors delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: 0.551" (14.00mm)
- Insulation Height: 0.409" (10.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 31.5µin (0.80µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA66), Nylon 6/6
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 2A
- Voltage Rating: 250VAC, 350VDC
