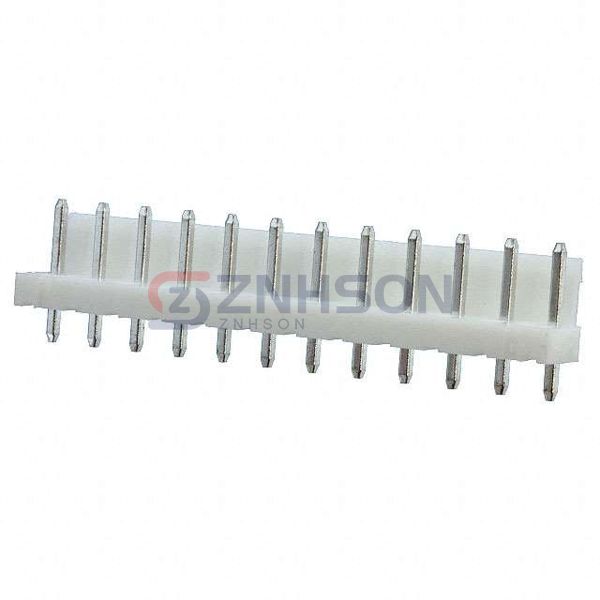

1-1744037-2

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.200" (5.08mm)
• Number of Positions: 12
• Number of Rows: 1
• Row Spacing - Mating: -
• Number of Positions Loaded: All
• Style: Board to Cable/Wire
• Shrouding: Shrouded - 1 Wall
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Friction Lock
• Contact Length - Mating: 0.303" (7.70mm)
• Contact Length - Post: 0.146" (3.70mm)
• Overall Contact Length: 0.575" (14.60mm)
• Insulation Height: 0.126" (3.20mm)
• Contact Shape: Square
• Contact Finish - Mating: Tin
• Contact Finish Thickness - Mating: 120.0µin (3.05µm)
• Contact Finish - Post: Tin
• Contact Material: Copper Alloy
• Insulation Material: Polyamide (PA66), Nylon 6/6
• Features: -
• Operating Temperature: -25°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Natural
• Current Rating (Amps): 7.5A
• Voltage Rating: 250VAC
