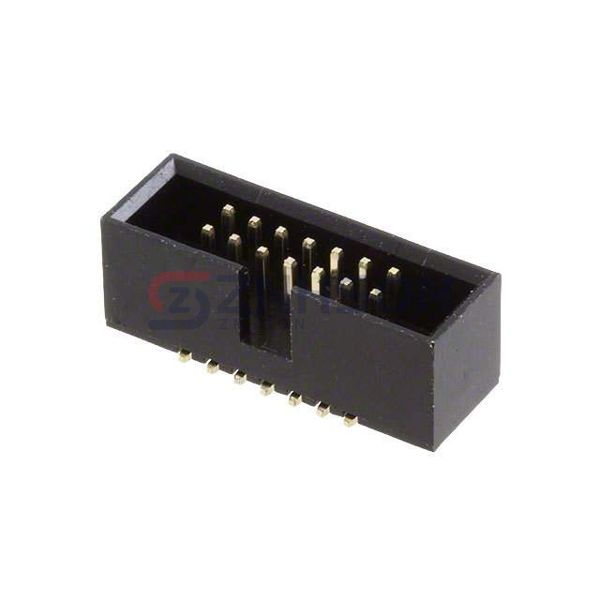

3220-14-0300-00
CNC Tech
CNC Tech
CONN HEADER SMD 14POS 1.27MM
$1.07
Available to order
Reference Price (USD)
1+
$0.96000
10+
$0.84200
100+
$0.72600
500+
$0.59400
2,730+
$0.47850
5,460+
$0.46200
10,920+
$0.43890
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 3220-14-0300-00 rectangular connector header from CNC Tech, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 3220-14-0300-00 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. CNC Tech guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.213" (5.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: Flash
- Contact Finish - Post: Gold
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T
- Features: Keying Slot
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: -
- Current Rating (Amps): 1A
- Voltage Rating: -
