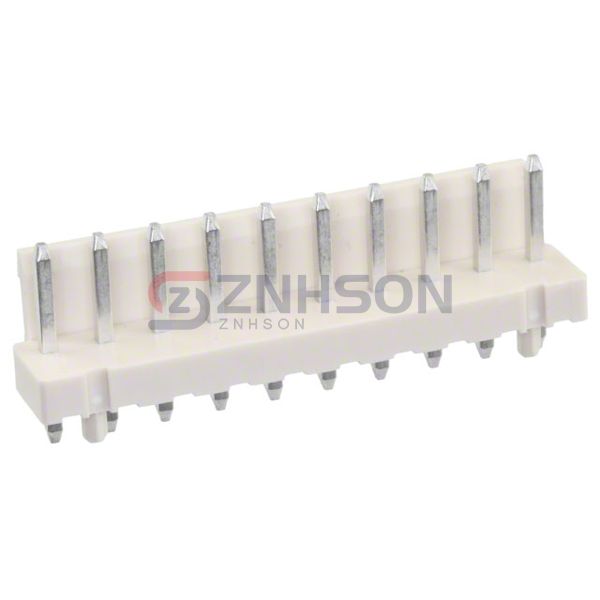

1-1744429-0
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 10POS 3.96MM
$2.06
Available to order
Reference Price (USD)
1+
$0.80000
10+
$0.75400
100+
$0.58890
500+
$0.51828
1,000+
$0.43583
5,000+
$0.38871
10,000+
$0.36515
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1-1744429-0 by TE Connectivity AMP Connectors is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. TE Connectivity AMP Connectors delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.303" (7.70mm)
- Contact Length - Post: 0.145" (3.68mm)
- Overall Contact Length: 0.575" (14.60mm)
- Insulation Height: 0.127" (3.22mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 120.0µin (3.05µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon
- Features: Board Guide, Glow Wire Compliant
- Operating Temperature: -25°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 7.5A
- Voltage Rating: 250VAC
