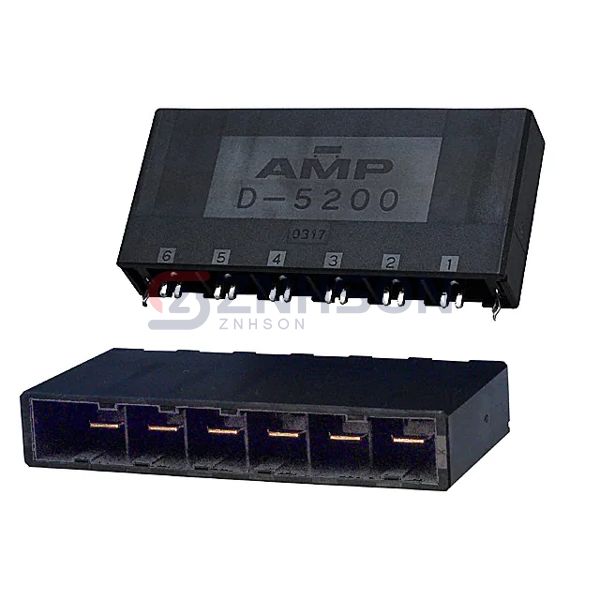

1-179960-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 6POS 10.16MM
$16.34
Available to order
Reference Price (USD)
1+
$12.26000
10+
$11.77400
100+
$10.05660
500+
$8.58498
1,000+
$7.70195
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with the 1-179960-2 rectangular connector header from TE Connectivity AMP Connectors. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 1-179960-2 meets the highest industry standards. TE Connectivity AMP Connectors provides connectors that ensure long-term reliability and performance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Tab
- Pitch - Mating: 0.400" (10.16mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.150" (3.81mm)
- Overall Contact Length: -
- Insulation Height: 1.260" (32.00mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Polyester, Glass Filled
- Features: Board Lock
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: IP20
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 30A
- Voltage Rating: 630V
