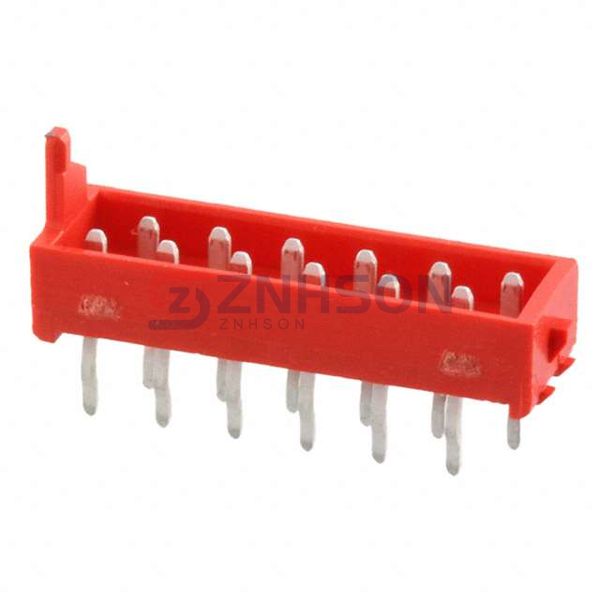

1-215464-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 12POS 2.54MM
$0.91
Available to order
Reference Price (USD)
1+
$0.91000
500+
$0.9009
1000+
$0.8918
1500+
$0.8827
2000+
$0.8736
2500+
$0.8645
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 1-215464-2 rectangular connector header from TE Connectivity AMP Connectors, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 1-215464-2 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.122" (3.10mm)
- Overall Contact Length: -
- Insulation Height: 0.142" (3.60mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 118.1µin (3.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Red
- Current Rating (Amps): 1.5A
- Voltage Rating: 230V
Related Products
Samtec Inc.
TSM-107-01-SS-DH-A
Samtec Inc.
FTMH-113-03-L-DV-A-P
Samtec Inc.
TSM-105-03-L-SH-TR
Harwin Inc.
M80-5100442
Samtec Inc.
MMT-105-02-L-MT-P
Samtec Inc.
FTS-115-02-F-D
Amphenol ICC (FCI)
10159560-200421RLF
TE Connectivity AMP Connectors
5-794631-0
Samtec Inc.

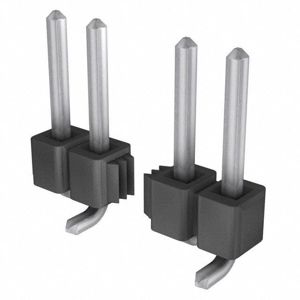

TSM-120-01-T-SV-TR
