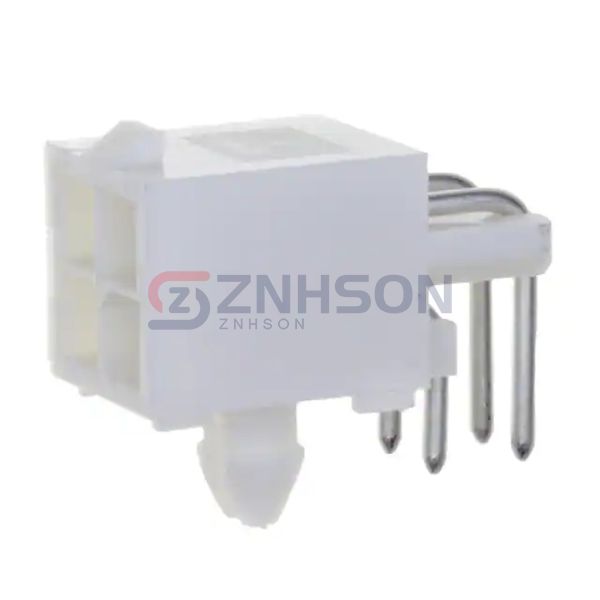

1-770968-0

TE Connectivity AMP Connectors

Manufacturer

TE Connectivity AMP Connectors

Description:

CONN HEADER R/A 4POS 4.14MM

Datasheet:

1-770968-0 Datasheet

$1.76

Available to order

Reference Price (USD)

$1.38000

10+

$1.25000

100+

$1.07130

500+

$0.89272

1,000+

$0.76520

5,000+

$0.67847

10,000+

$0.66317

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Choose the 1-770968-0 rectangular connector header from TE Connectivity AMP Connectors for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. TE Connectivity AMP Connectors is committed to providing connectors that exceed industry expectations.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.163" (4.14mm)
Number of Positions: 4
Number of Rows: 2
Row Spacing - Mating: 0.163" (4.14mm)
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Locking Ramp
Contact Length - Mating: -
Contact Length - Post: 0.145" (3.68mm)
Overall Contact Length: -
Insulation Height: 0.386" (9.80mm)
Contact Shape: Circular
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 150.0µin (3.81µm)
Contact Finish - Post: Tin
Contact Material: Brass
Insulation Material: Polyamide (PA), Nylon
Features: Board Lock
Operating Temperature: -20°C ~ 85°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: White
Current Rating (Amps): Varies by Wire Gauge
Voltage Rating: 600VAC
