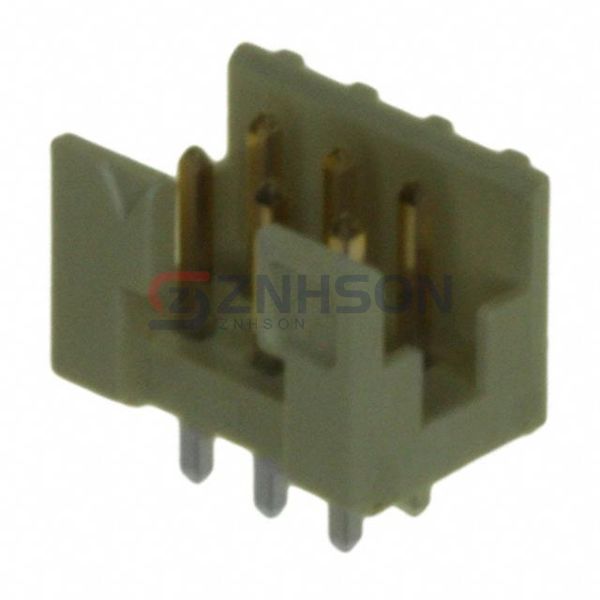

10075025-G01-06LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 6POS 2MM
$2.15
Available to order
Reference Price (USD)
1+
$1.70000
10+
$1.54500
100+
$1.32430
500+
$1.10356
1,000+
$0.94590
5,000+
$0.83870
10,000+
$0.81978
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the 10075025-G01-06LF rectangular connector header from Amphenol ICC (FCI) for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Amphenol ICC (FCI) is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.079" (2.00mm)
- Overall Contact Length: -
- Insulation Height: 0.220" (5.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Keying Slot
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 2A (AC/DC)
- Voltage Rating: 200V (AC/DC)
