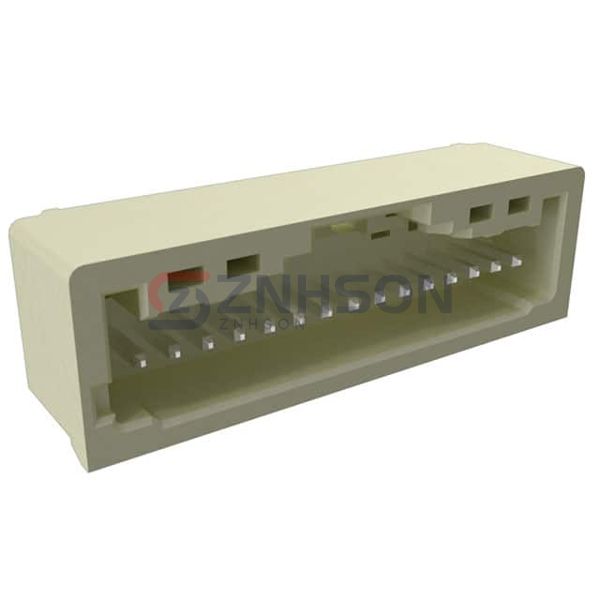

10157547-0015SR1LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN MULTIPITCH 1.25MM RA SMT
$1.38
Available to order
Reference Price (USD)
1+
$1.38000
500+
$1.3662
1000+
$1.3524
1500+
$1.3386
2000+
$1.3248
2500+
$1.311
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 10157547-0015SR1LF by Amphenol ICC (FCI) is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 10157547-0015SR1LF supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Amphenol ICC (FCI) ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.049" (1.25mm)
- Number of Positions: 15
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.274" (6.96mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Solder Retention
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Natural
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 50VAC/DC
