1440800000
Weidmüller
Weidmüller
CONN HEADER VERT 4POS 5MM
$8.43
Available to order
Reference Price (USD)
100+
$8.57930
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

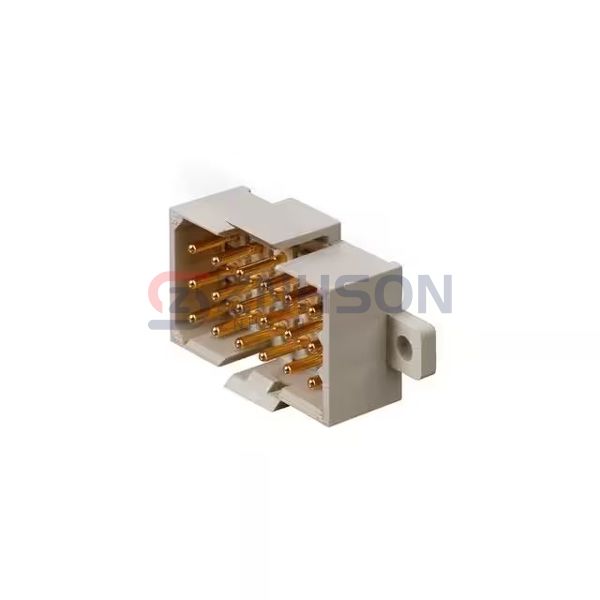

Upgrade your electronic designs with the 1440800000 rectangular connector header by Weidmüller. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 1440800000 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Weidmüller for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.197" (5.00mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.197" (5.00mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.465" (11.80mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Mounting Flange
- Operating Temperature: 100°C
- Ingress Protection: IP20
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): 10A
- Voltage Rating: 300V
