145-0701-861
Cinch Connectivity Solutions Johnson
Cinch Connectivity Solutions Johnson

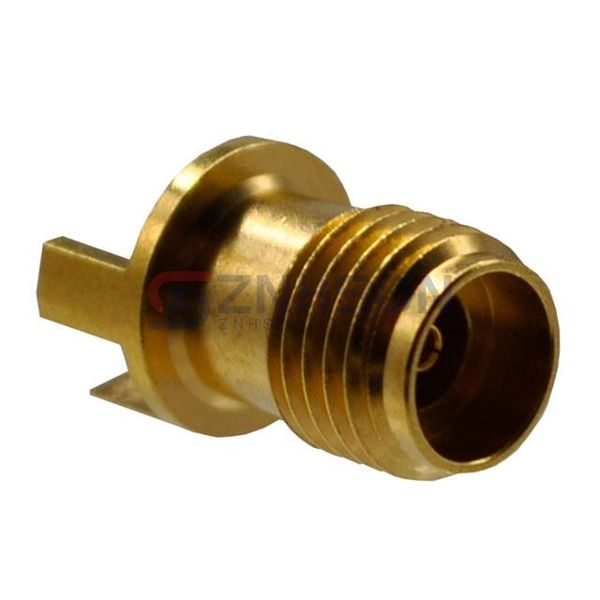

CONN 2.92MM END LAUNCH JACK
$44.40
Available to order
Reference Price (USD)
1+
$44.40000
500+
$43.956
1000+
$43.512
1500+
$43.068
2000+
$42.624
2500+
$42.18
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 145-0701-861 from Cinch Connectivity Solutions Johnson represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 145-0701-861 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: 2.92mm
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Board Edge, End Launch
- Mounting Feature: -
- Cable Group: -
- Fastening Type: Threaded
- Frequency - Max: 40 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Beryllium Copper
