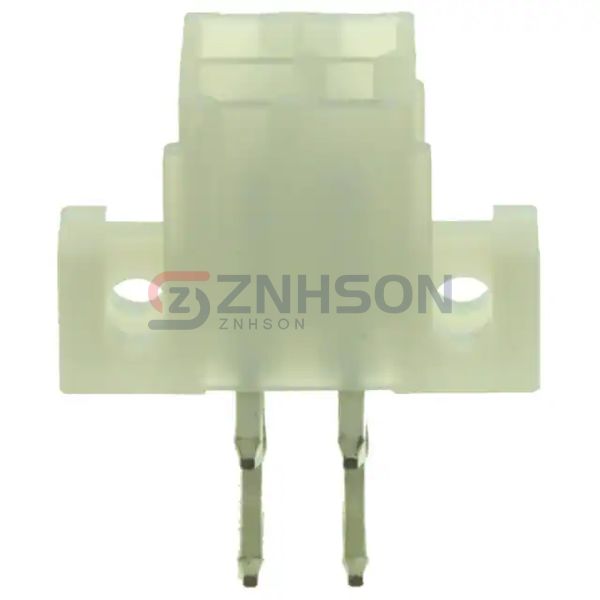

1586043-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 4POS 4.2MM
$0.86
Available to order
Reference Price (USD)
1+
$0.74000
10+
$0.69500
100+
$0.53320
500+
$0.46364
1,000+
$0.38250
5,000+
$0.33614
10,000+
$0.31296
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1586043-4 male pin header by TE Connectivity AMP Connectors provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.165" (4.20mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.165" (4.20mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.142" (3.60mm)
- Overall Contact Length: -
- Insulation Height: 0.386" (9.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 80.0µin (2.03µm)
- Contact Finish - Post: Tin
- Contact Material: Brass Alloy
- Insulation Material: Polyamide (PA), Nylon
- Features: Mounting Flange
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-2
- Insulation Color: Natural
- Current Rating (Amps): 9A
- Voltage Rating: 600VAC
