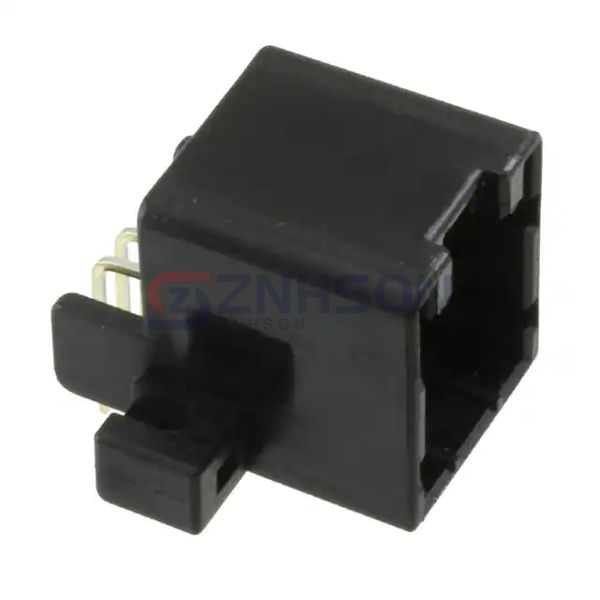

174049-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 8POS 2.5MM
$2.73
Available to order
Reference Price (USD)
1+
$1.92000
10+
$1.74600
100+
$1.49670
500+
$1.24722
1,000+
$1.06905
5,000+
$0.94789
10,000+
$0.92651
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 174049-2 by TE Connectivity AMP Connectors is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. TE Connectivity AMP Connectors delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: -
- Contact Type: Tab
- Pitch - Mating: 0.098" (2.50mm)
- Number of Positions: 8
- Number of Rows: 2
- Row Spacing - Mating: 0.205" (5.20mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: 0.276" (7.00mm)
- Contact Length - Post: 0.157" (4.00mm)
- Overall Contact Length: -
- Insulation Height: 0.658" (16.71mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Mounting Flange
- Operating Temperature: -30°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: -
