178305-5
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 10POS 3.81MM
$4.54
Available to order
Reference Price (USD)
1+
$3.30000
10+
$3.18400
100+
$2.69390
500+
$2.32658
1,000+
$2.02045
5,000+
$1.83678
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

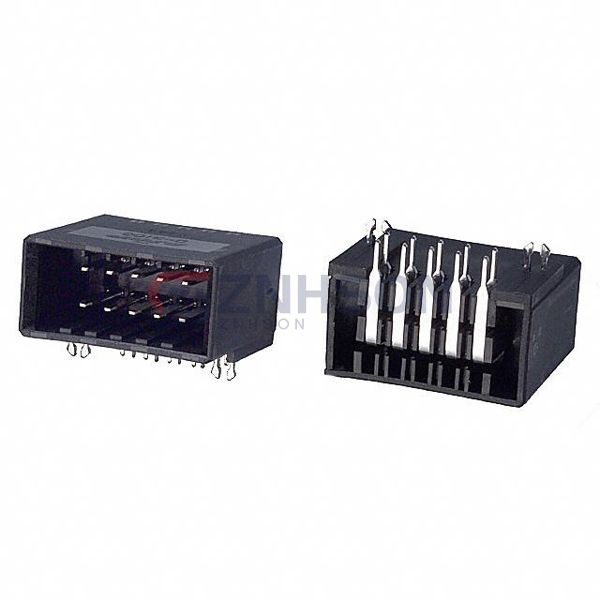

Discover the 178305-5 rectangular connector header from TE Connectivity AMP Connectors, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 178305-5 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Tab
- Pitch - Mating: 0.150" (3.81mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.200" (5.08mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.150" (3.81mm)
- Overall Contact Length: -
- Insulation Height: 0.568" (14.43mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 78.7µin (2.00µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Polyester, Glass Filled
- Features: Board Lock
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: 250V
