1MM-HU-D39-VS-00-H-TBP
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
SCL 1.0 HDR DRVT USP 078 SMT G3
$8.30
Available to order
Reference Price (USD)
1+
$8.29736
500+
$8.2143864
1000+
$8.1314128
1500+
$8.0484392
2000+
$7.9654656
2500+
$7.882492
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

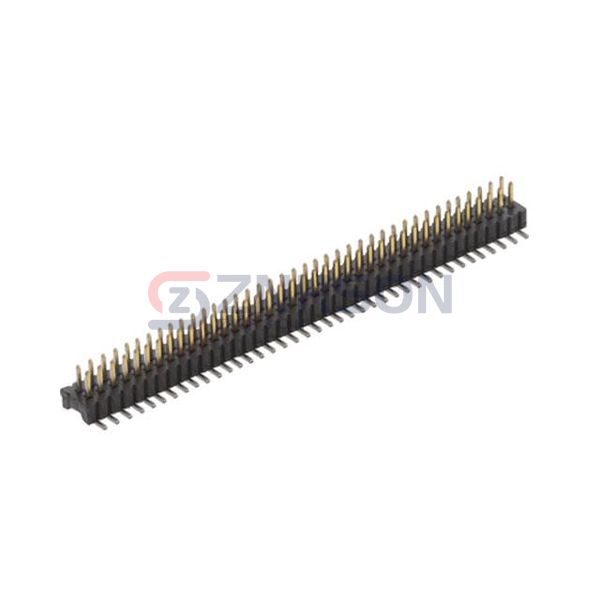

Discover the 1MM-HU-D39-VS-00-H-TBP rectangular connector header from TE Connectivity AMP Connectors, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 1MM-HU-D39-VS-00-H-TBP adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. TE Connectivity AMP Connectors guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 78
- Number of Rows: 2
- Row Spacing - Mating: 0.039" (1.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.083" (2.10mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Pick and Place
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 30VAC
