804-10-093-10-002000
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.

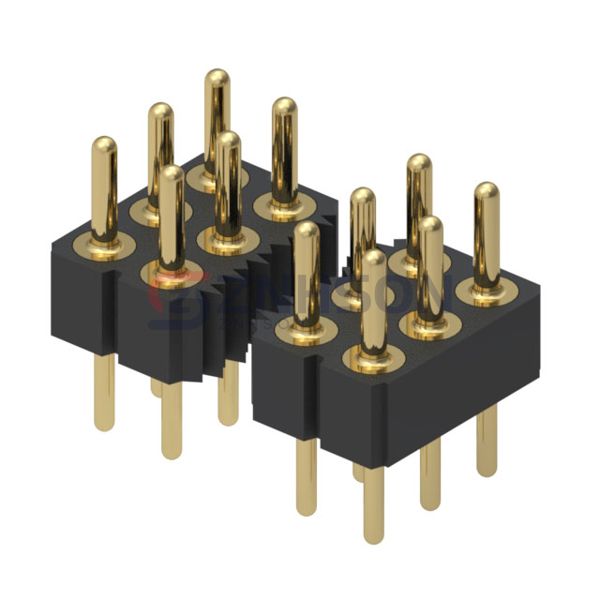

CONN HEADER VERT 93POS 2.54MM
$19.11
Available to order
Reference Price (USD)
1+
$17.31000
10+
$16.07700
25+
$14.42760
50+
$14.01560
100+
$12.36670
250+
$11.54224
500+
$11.29490
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 804-10-093-10-002000 male pin header by Mill-Max Manufacturing Corp. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Mill-Max Manufacturing Corp. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 93
- Number of Rows: 3
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.142" (3.61mm)
- Contact Length - Post: 0.133" (3.38mm)
- Overall Contact Length: 0.400" (10.16mm)
- Insulation Height: 0.110" (2.79mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Brass Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
