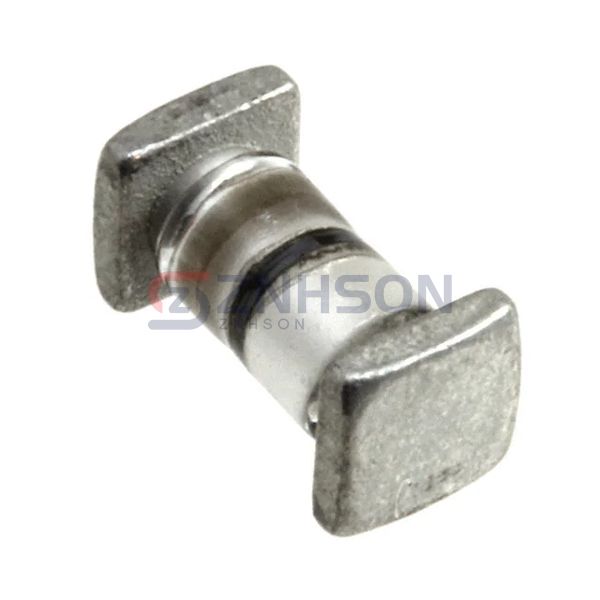

1N5820US/TR
Microchip Technology
Microchip Technology
DIODE SMALL-SIGNAL SCHOTTKY
$15.27
Available to order
Reference Price (USD)
1+
$15.27000
500+
$15.1173
1000+
$14.9646
1500+
$14.8119
2000+
$14.6592
2500+
$14.5065
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5820US/TR by Microchip Technology is a high-efficiency single rectifier diode designed for modern electronic applications. Part of the Diodes - Rectifiers - Single category, it provides excellent performance in power conversion and voltage regulation. Its low leakage current and high surge capacity make it suitable for medical imaging devices, data centers, and telecommunications infrastructure. The 1N5820US/TR is also used in smart home devices and wearable technology, ensuring seamless operation. Microchip Technology's expertise in semiconductor technology guarantees that the 1N5820US/TR delivers top-notch performance in any application.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 500 mV @ 3 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 100 µA @ 20 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: SQ-MELF, B
- Supplier Device Package: B, SQ-MELF
- Operating Temperature - Junction: -65°C ~ 125°C
