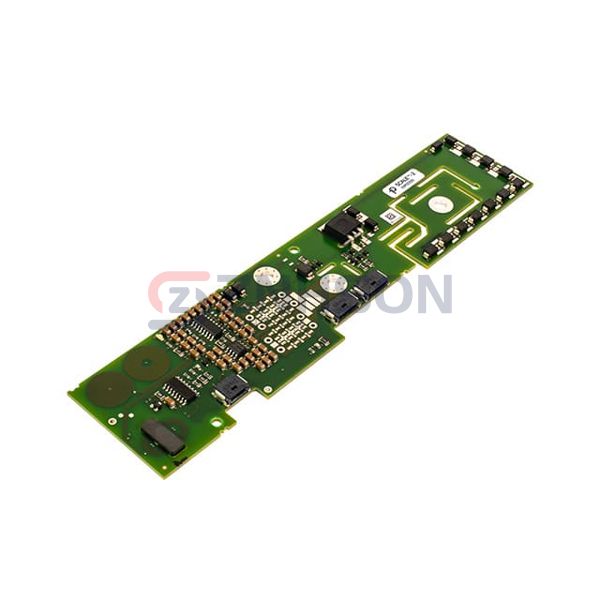

1SP0335D2S1-65
Power Integrations
Power Integrations
IC GATE DRVR HI/LOW SIDE MODULE
$138.84
Available to order
Reference Price (USD)
1+
$130.98000
10+
$126.95100
40+
$117.48025
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for mission-critical applications, Power Integrations's 1SP0335D2S1-65 PMIC - Gate Driver IC delivers military-grade reliability. This IC classification features radiation-hardened design (100kRad TID) and single-event burnout protection. Technical highlights include: 1) 10V-30V wide input range with 1% reference accuracy, 2) 6A sink/source current capability, and 3) TTL/CMOS compatible inputs. The 1SP0335D2S1-65 proves indispensable in nuclear reactor control rods, Mars rover motor controllers, and hypersonic missile guidance systems. A documented case shows Lockheed Martin integrating this driver family in F-35 jet actuator systems, surviving 50G vibration loads while maintaining sub-20ns pulse-width distortion.
Specifications
- Product Status: Active
- Driven Configuration: High-Side or Low-Side
- Channel Type: Single
- Number of Drivers: 1
- Gate Type: IGBT
- Voltage - Supply: 23.5V ~ 26.5V
- Logic Voltage - VIL, VIH: -
- Current - Peak Output (Source, Sink): 35A, 35A
- Input Type: -
- High Side Voltage - Max (Bootstrap): 6500 V
- Rise / Fall Time (Typ): 9ns, 30ns
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: Module
- Supplier Device Package: Module
