280618-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

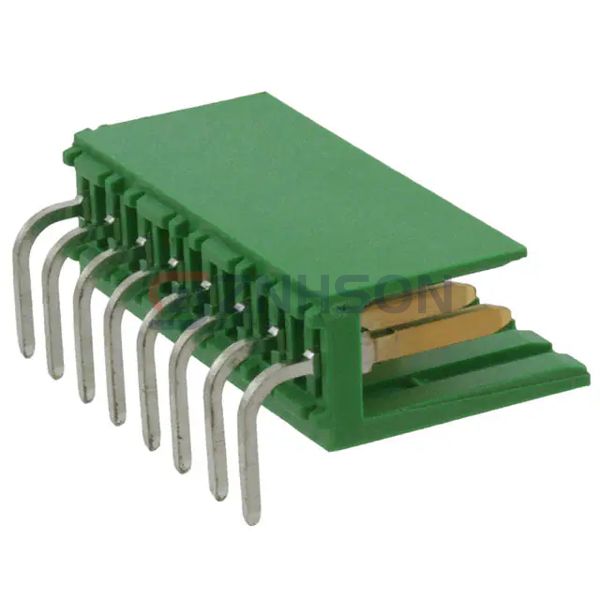

CONN HEADER R/A 8POS 3.96MM
$5.11
Available to order
Reference Price (USD)
1+
$4.33000
10+
$4.15200
100+
$3.46000
500+
$2.94100
1,000+
$2.50850
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 280618-2 by TE Connectivity AMP Connectors is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 280618-2 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. TE Connectivity AMP Connectors ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 8
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.394" (10.00mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.346" (8.80mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 14.5µin (0.37µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polycarbonate, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Green
- Current Rating (Amps): -
- Voltage Rating: -
