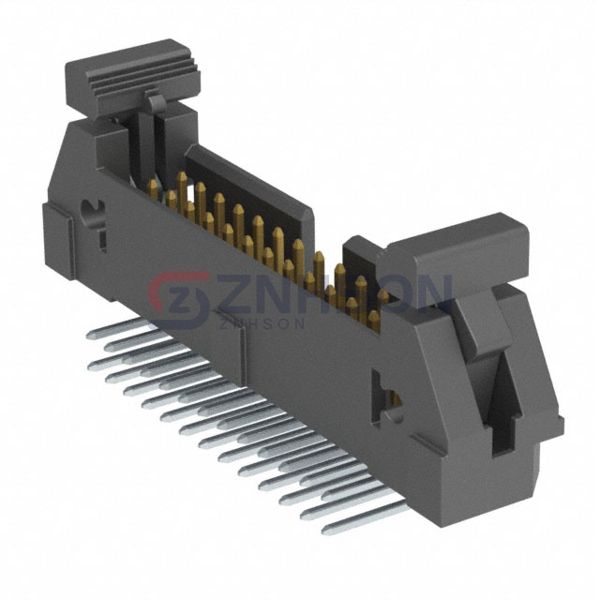

EJH-113-01-L-D-RA
Samtec Inc.
Samtec Inc.
CONN HEADER R/A 26POS 2.54MM
$11.81
Available to order
Reference Price (USD)
1+
$8.33000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The EJH-113-01-L-D-RA male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.225" (5.72mm)
- Contact Length - Post: 0.090" (2.29mm)
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-105-04-S-SV-P-TR
Mill-Max Manufacturing Corp.
800-10-055-61-001000
Samtec Inc.
TFML-125-01-S-D-A
Samtec Inc.
MTLW-103-07-G-S-250
Samtec Inc.
TSM-109-01-F-SV-P-TR
Samtec Inc.
TSM-113-01-T-DH-A
Mill-Max Manufacturing Corp.
349-10-118-00-560000
Samtec Inc.
TST-120-01-T-D
Hirose Electric Co Ltd

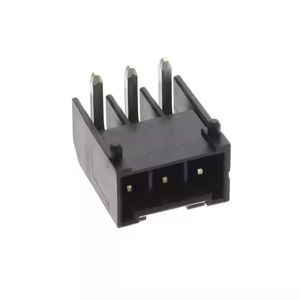

DF63M-3P-3.96DS
