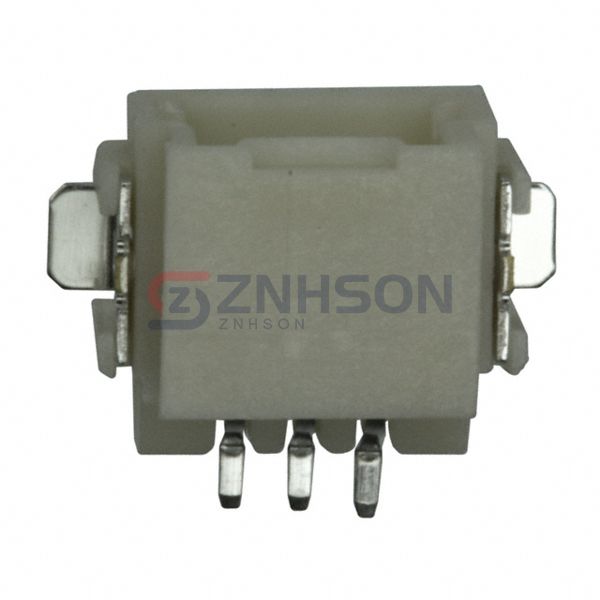

292227-3
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER SMD R/A 3POS 1.5MM
$1.02
Available to order
Reference Price (USD)
700+
$0.69576
1,400+
$0.62619
2,100+
$0.59140
3,500+
$0.57400
4,900+
$0.55661
17,500+
$0.52182
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 292227-3 from TE Connectivity AMP Connectors is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 292227-3 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose TE Connectivity AMP Connectors for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 3
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.094" (2.40mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.193" (4.90mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA6T), Nylon 6T, Glass Filled
- Features: Board Guide, Solder Retention
- Operating Temperature: -30°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Beige
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 50VAC
Related Products
Samtec Inc.
TSM-103-01-H-SH-A
Amphenol Sine Systems Corp
AT04-12PC-BM03
Sullins Connector Solutions
GEC25SABN-M30
Amphenol ICC (FCI)
77311-118-27LF
Samtec Inc.
TSM-113-01-SM-DV-P
Preci-Dip
802-80-016-65-001101
Amphenol ICC (FCI)
90309-010LF
TE Connectivity AMP Connectors
6-103414-8

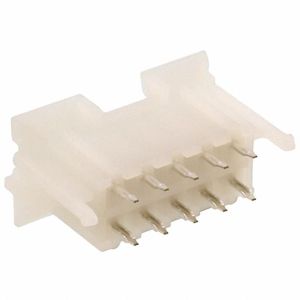

Molex
