2ED020I12F2XUMA1
Infineon Technologies
Infineon Technologies

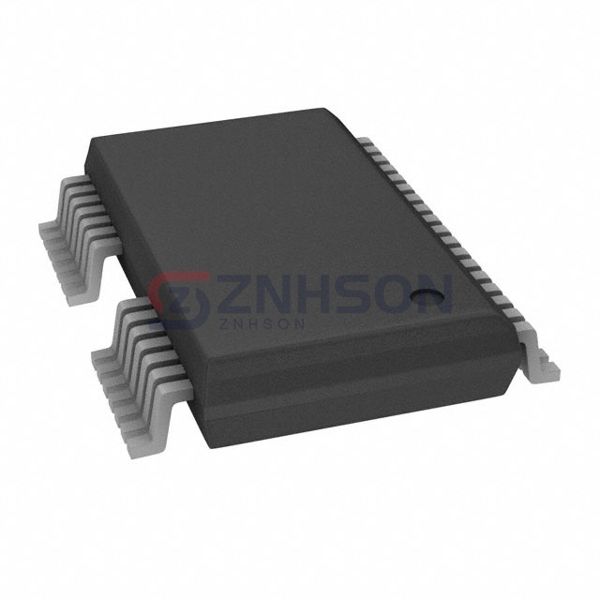

IC GATE DRVR HALF-BRIDG DSO36-58
$7.38
Available to order
Reference Price (USD)
1,000+
$4.04512
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Infineon Technologies's 2ED020I12F2XUMA1 represents a breakthrough in multi-chip PMIC - Gate Driver ICs with integrated current sensing. This all-in-one solution combines: 1) 16-bit shunt monitor, 2) Isolated 2.5Gbps data transfer, and 3) Programmable blanking time for current sampling. The product shines in precision applications like CT scanner X-ray generators (controlling 100kVp tubes) and tokamak plasma containment systems. Field data from ITER fusion reactor shows the 2ED020I12F2XUMA1 driver family maintaining 0.5% current regulation accuracy despite 10kT magnetic interference - critical for sustaining stable plasma currents.
Specifications
- Product Status: Active
- Driven Configuration: Half-Bridge
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: IGBT
- Voltage - Supply: 13V ~ 20V
- Logic Voltage - VIL, VIH: 1.5V, 3.5V
- Current - Peak Output (Source, Sink): 2A, 2A
- Input Type: Inverting, Non-Inverting
- High Side Voltage - Max (Bootstrap): 1200 V
- Rise / Fall Time (Typ): 30ns, 50ns
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 36-BSSOP (0.295", 7.50mm Width), 32 Leads
- Supplier Device Package: PG-DSO-36-58
