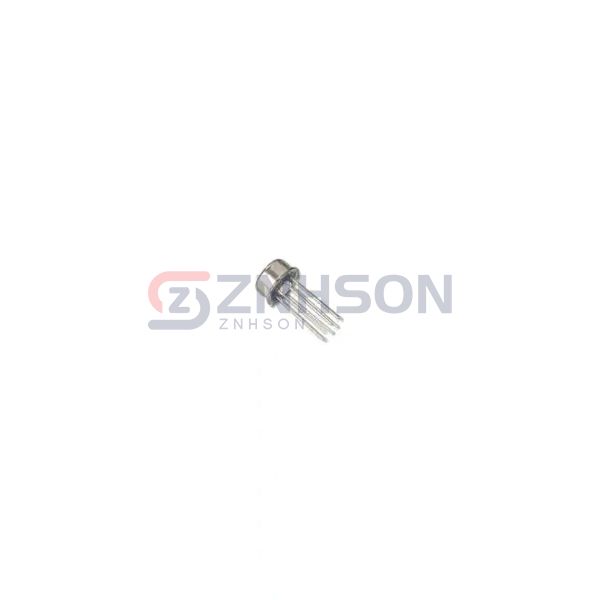

2N2322
Solid State Inc.
Solid State Inc.
TO5 1.6 AMP SCR
$4.40
Available to order
Reference Price (USD)
1+
$4.40000
500+
$4.356
1000+
$4.312
1500+
$4.268
2000+
$4.224
2500+
$4.18
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2N2322 Thyristor - SCR by Solid State Inc. is a standout in the Discrete Semiconductor Products lineup, offering superior voltage and current ratings. Engineered for efficiency, this SCR features low gate triggering current and high noise immunity. Its primary applications include AC power control, phase-angle controllers, and UPS systems. Examples range from household dimmers to heavy-duty industrial machinery. With Solid State Inc.'s commitment to quality, the 2N2322 guarantees optimal performance in demanding environments.
Specifications
- Product Status: Active
- Voltage - Off State: 25 V
- Voltage - Gate Trigger (Vgt) (Max): 800 mV
- Current - Gate Trigger (Igt) (Max): 200 µA
- Voltage - On State (Vtm) (Max): 2.2 V
- Current - On State (It (AV)) (Max): -
- Current - On State (It (RMS)) (Max): 1.6 A
- Current - Hold (Ih) (Max): 2 mA
- Current - Off State (Max): 10 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 15A
- SCR Type: Standard Recovery
- Operating Temperature: -65°C ~ 125°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-205AA, TO-5-3 Metal Can
- Supplier Device Package: TO-5
