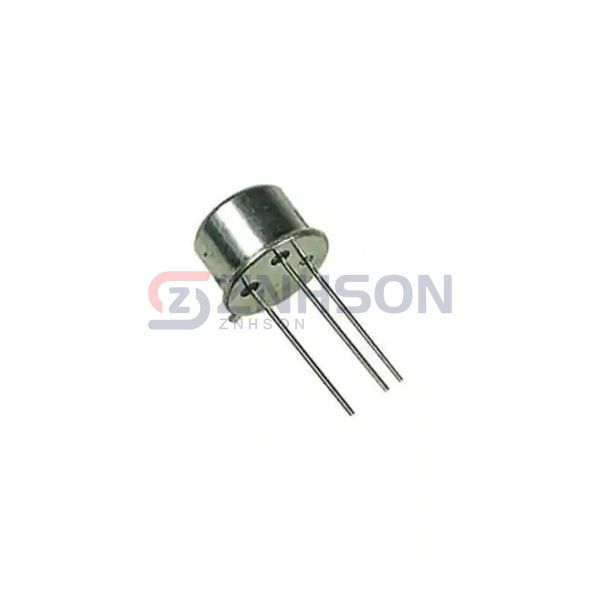

2N2324
Solid State Inc.
Solid State Inc.
SCR 100V 1.6A TO5
$4.40
Available to order
Reference Price (USD)
1+
$4.40000
500+
$4.356
1000+
$4.312
1500+
$4.268
2000+
$4.224
2500+
$4.18
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Engineered for excellence, the 2N2324 SCR by Solid State Inc. represents the pinnacle of Thyristor technology within Discrete Semiconductor Products. Featuring symmetrical voltage blocking and low holding current, it's ideal for AC switching applications. From home appliances like washing machines to critical infrastructure such as grid stabilization systems, this component shines. Solid State Inc.'s rigorous testing protocols ensure the 2N2324 exceeds performance expectations.
Specifications
- Product Status: Active
- Voltage - Off State: 100 V
- Voltage - Gate Trigger (Vgt) (Max): 800 mV
- Current - Gate Trigger (Igt) (Max): 200 µA
- Voltage - On State (Vtm) (Max): 2.2 V
- Current - On State (It (AV)) (Max): 1.6 A
- Current - On State (It (RMS)) (Max): 1.6 A
- Current - Hold (Ih) (Max): 2 mA
- Current - Off State (Max): 10 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 15A @ 60Hz
- SCR Type: Standard Recovery
- Operating Temperature: -65°C ~ 125°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-205AA, TO-5-3 Metal Can
- Supplier Device Package: TO-5
Related Products
Littelfuse Inc.
S4025NRP
Littelfuse Inc.
SV6012R2TP
Vishay General Semiconductor - Diodes Division
VS-ST280C04C0
STMicroelectronics
TXN825RG
Renesas Electronics America Inc
3P4J-ZK-E1-AZ
NTE Electronics, Inc
NTE5502
Littelfuse Inc.
S4008LTP
Littelfuse Inc.
EC103MRP
Solid State Inc.

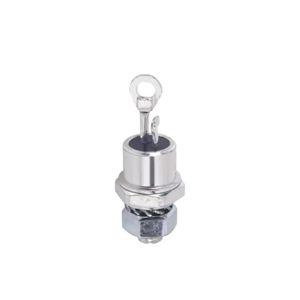

25RIA40
