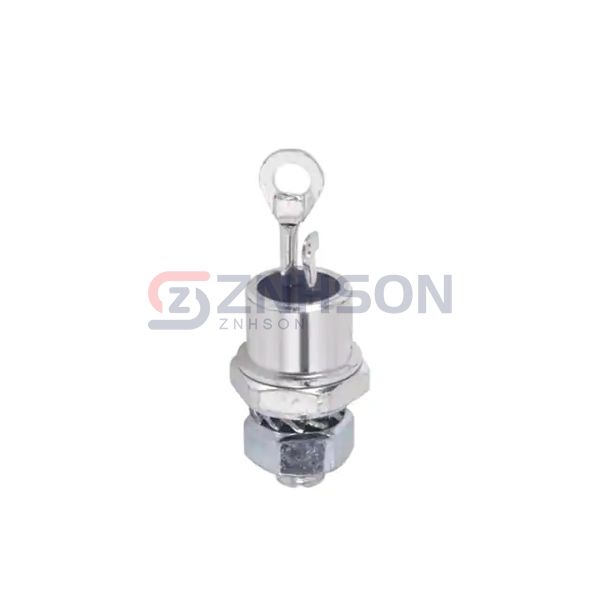

2N5207
Solid State Inc.
Solid State Inc.
TO 48 22 AMP SCR
$10.00
Available to order
Reference Price (USD)
1+
$10.00000
500+
$9.9
1000+
$9.8
1500+
$9.7
2000+
$9.6
2500+
$9.5
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 2N5207 SCR from Solid State Inc., a top-tier choice in Thyristors. This Discrete Semiconductor Product excels in high-power switching with minimal energy loss. Key features include high surge capability and reliable turn-off characteristics. Commonly used in electric vehicle charging stations, power supplies, and HVAC systems, the 2N5207 is versatile and dependable. Solid State Inc.'s cutting-edge technology ensures this SCR meets global industry standards.
Specifications
- Product Status: Active
- Voltage - Off State: 1.2 kV
- Voltage - Gate Trigger (Vgt) (Max): 3 V
- Current - Gate Trigger (Igt) (Max): 40 mA
- Voltage - On State (Vtm) (Max): 2.3 V
- Current - On State (It (AV)) (Max): -
- Current - On State (It (RMS)) (Max): 35 A
- Current - Hold (Ih) (Max): 100 mA
- Current - Off State (Max): 1.7 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 300A
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Stud Mount
- Package / Case: TO-208AA, TO-48-3, Stud
- Supplier Device Package: TO-48
Related Products

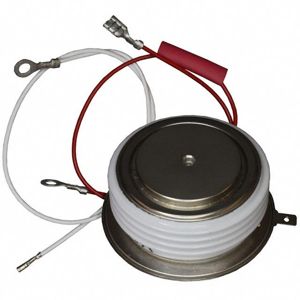

Vishay General Semiconductor - Diodes Division
