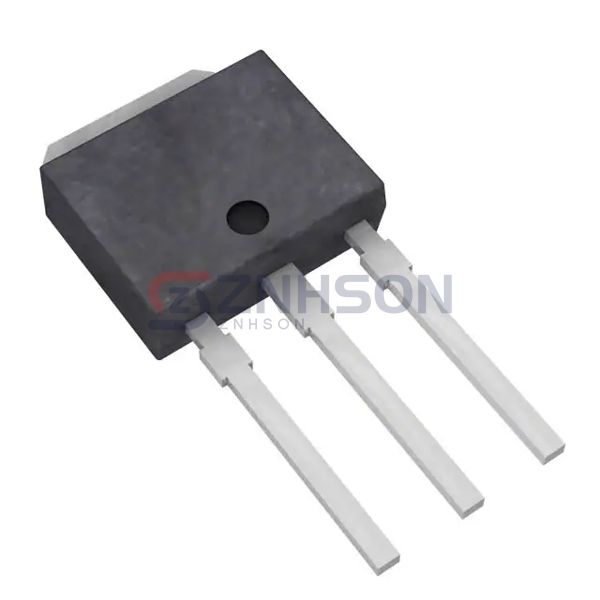

2SD1805F-E
onsemi
onsemi
TRANS NPN 20V 5A TP
$0.20
Available to order
Reference Price (USD)
1+
$0.20000
500+
$0.198
1000+
$0.196
1500+
$0.194
2000+
$0.192
2500+
$0.19
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your circuit designs with the 2SD1805F-E Bipolar Junction Transistor (BJT) from onsemi. This single BJT transistor offers exceptional performance in amplification and switching applications. Its high gain and low power dissipation make it suitable for use in audio equipment, sensors, and communication devices. The 2SD1805F-E is built to withstand harsh environments, ensuring reliability in industrial and consumer applications. Trust onsemi to deliver high-quality discrete semiconductor products that meet your technical requirements.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN
- Current - Collector (Ic) (Max): 5 A
- Voltage - Collector Emitter Breakdown (Max): 20 V
- Vce Saturation (Max) @ Ib, Ic: 500mV @ 60mA, 3A
- Current - Collector Cutoff (Max): 100nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 160 @ 500mA, 2V
- Power - Max: 1 W
- Frequency - Transition: 120MHz
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
- Supplier Device Package: TP
