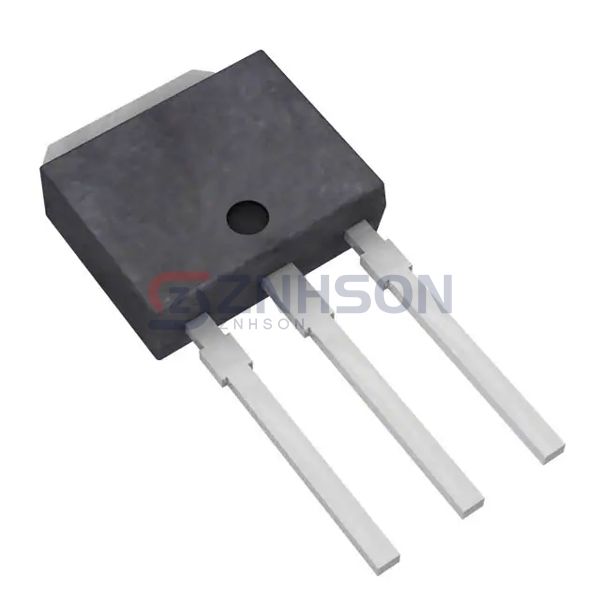

2SD1815S-H
onsemi
onsemi
TRANS NPN 100V 3A TP
$0.30
Available to order
Reference Price (USD)
1+
$0.30000
500+
$0.297
1000+
$0.294
1500+
$0.291
2000+
$0.288
2500+
$0.285
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2SD1815S-H Bipolar Junction Transistor (BJT) by onsemi is a versatile component in the discrete semiconductor products category. Designed for single-stage amplification and switching, this BJT transistor is widely used in medical devices, instrumentation, and power electronics. With its excellent thermal stability and low leakage current, the 2SD1815S-H provides consistent performance in demanding applications. Choose onsemi for cutting-edge semiconductor solutions that drive innovation and efficiency in your projects.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN
- Current - Collector (Ic) (Max): 3 A
- Voltage - Collector Emitter Breakdown (Max): 100 V
- Vce Saturation (Max) @ Ib, Ic: 400mV @ 150mA, 1.5A
- Current - Collector Cutoff (Max): 1µA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 140 @ 500mA, 5V
- Power - Max: 1 W
- Frequency - Transition: 180MHz
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
- Supplier Device Package: TP
Related Products
Diodes Incorporated
ZXTN25060BZTA
onsemi
CPH3109-TL-E
Nexperia USA Inc.
BC807K-25R
Infineon Technologies
BSP61H6327XTSA1
MACOM Technology Solutions
JANTX2N5153
Nexperia USA Inc.
BC860CW,115
NTE Electronics, Inc
NTE288
NTE Electronics, Inc
NTE2330
Fairchild Semiconductor

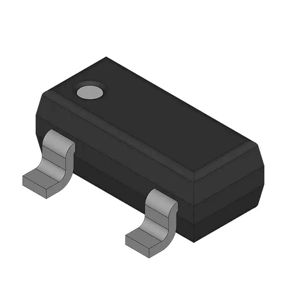

KST4403MTF
