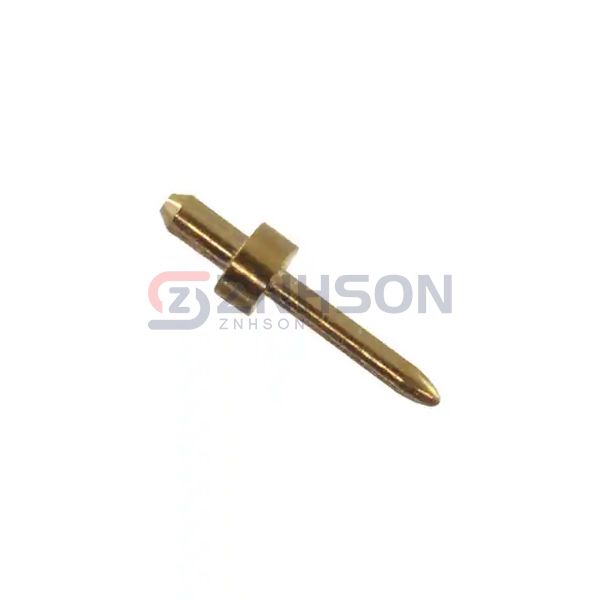

3136-1-00-15-00-00-08-0
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN PC PIN CIRC .030DIA GOLD
$0.73
Available to order
Reference Price (USD)
1+
$0.64000
10+
$0.60000
25+
$0.54000
50+
$0.48000
100+
$0.46000
250+
$0.42000
500+
$0.40000
1,000+
$0.33000
2,500+
$0.30000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 3136-1-00-15-00-00-08-0 from Mill-Max Manufacturing Corp. is a durable and efficient terminal connector designed for PC pin and single post connections. Its robust construction ensures reliable performance in various applications, including telecommunications, aerospace, and renewable energy. The 3136-1-00-15-00-00-08-0 is a testament to Mill-Max Manufacturing Corp.'s commitment to quality and innovation. Whether for prototyping or mass production, this connector delivers consistent results. Trust Mill-Max Manufacturing Corp. for all your interconnect needs.
Specifications
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Double End
- Pin Size - Above Flange: 0.040" (1.02mm) Dia
- Pin Size - Below Flange: 0.030" (0.76mm) Dia
- Length - Above Flange: 0.082" (2.08mm)
- Length - Below Flange: 0.180" (4.57mm)
- Length - Overall: 0.302" (7.67mm)
- Flange Diameter: 0.078" (1.98mm)
- Mounting Hole Diameter: 0.043" (1.09mm)
- Mounting Type: Through Hole
- Termination: Solder
- Insulation: Non-Insulated
- Board Thickness: 0.062" (1.57mm)
- Contact Material: Brass Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
