3222-40005
Amphenol SV Microwave
Amphenol SV Microwave

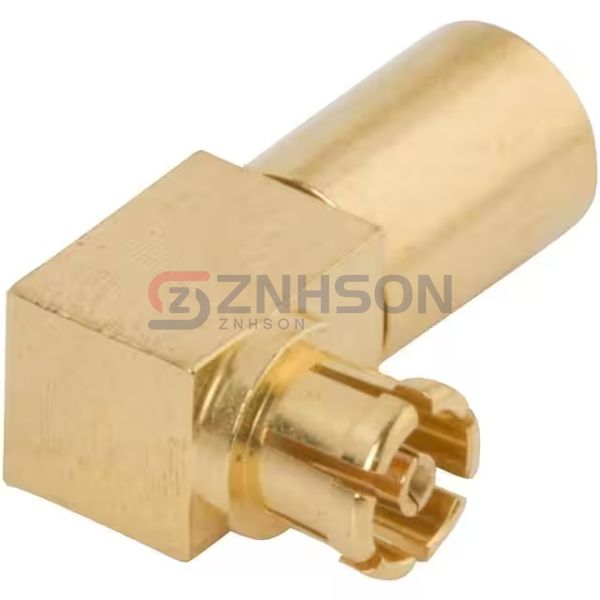

CONN SMPM JACK R/A 50OHM SOLDER
$54.20
Available to order
Reference Price (USD)
1+
$37.89000
10+
$34.20200
25+
$32.76800
50+
$30.72000
100+
$29.69600
250+
$28.05760
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 3222-40005 from Amphenol SV Microwave represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 3222-40005 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: SMPM
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: -
- Impedance: 50Ohm
- Mounting Type: Free Hanging (In-Line), Right Angle
- Mounting Feature: -
- Cable Group: RG-405 (.085" Flexible)
- Fastening Type: Snap-On
- Frequency - Max: 40 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Gold
- Ingress Protection: -
- Center Contact Material: Brass
