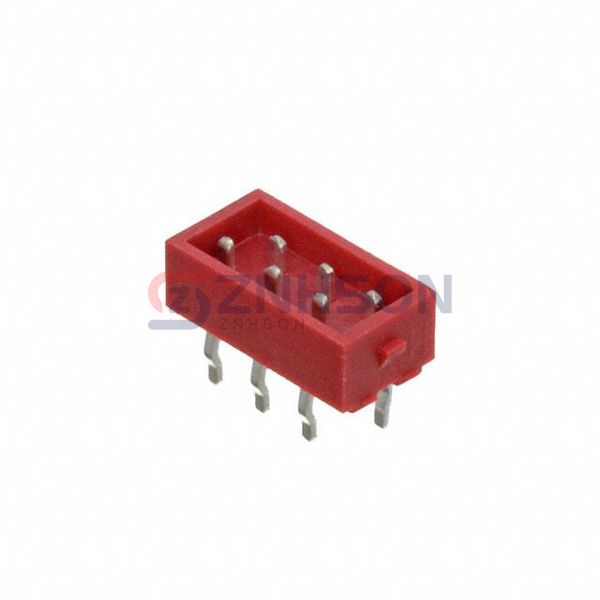

3522-06-0100-99
CNC Tech
CNC Tech
CONN HEADER VERT 6POS 2.54MM
$1.10
Available to order
Reference Price (USD)
1+
$0.96000
10+
$0.84200
100+
$0.72600
500+
$0.59400
2,750+
$0.47850
5,500+
$0.46200
11,000+
$0.43890
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 3522-06-0100-99 rectangular connector header from CNC Tech, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 3522-06-0100-99 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. CNC Tech guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.146" (3.70mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: -
- Current Rating (Amps): 1A
- Voltage Rating: 500VAC
