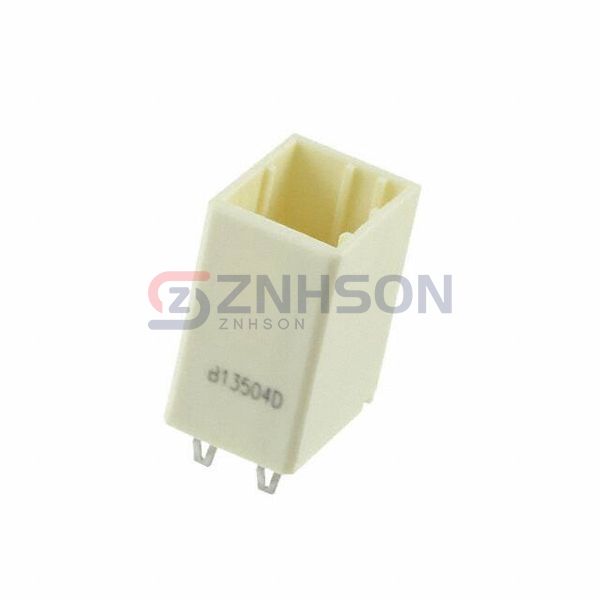

9-1318124-2

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Tab
• Pitch - Mating: 0.098" (2.50mm)
• Number of Positions: 6
• Number of Rows: 2
• Row Spacing - Mating: 0.148" (3.75mm)
• Number of Positions Loaded: All
• Style: Board to Board or Cable
• Shrouding: Shrouded - 4 Wall
• Mounting Type: Through Hole
• Termination: Solder
• Fastening Type: Detent Lock
• Contact Length - Mating: -
• Contact Length - Post: 0.134" (3.40mm)
• Overall Contact Length: -
• Insulation Height: 0.700" (17.78mm)
• Contact Shape: Rectangular
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: 15.0µin (0.38µm)
• Contact Finish - Post: Tin
• Contact Material: Copper Alloy
• Insulation Material: Thermoplastic, Polyester, Glass Filled
• Features: Board Lock
• Operating Temperature: -55°C ~ 105°C
• Ingress Protection: -
• Material Flammability Rating: UL94 V-0
• Insulation Color: Natural
• Current Rating (Amps): 5A
• Voltage Rating: 250V
