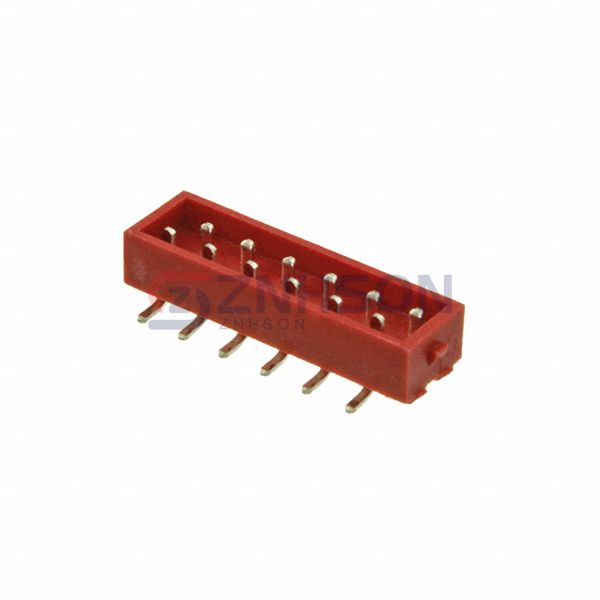

3522-12-0101-99
CNC Tech
CNC Tech
CONN HEADER SMD 12POS 2.54MM
$1.42
Available to order
Reference Price (USD)
1+
$1.33000
10+
$1.17300
100+
$1.01200
500+
$0.82800
1,920+
$0.69000
5,760+
$0.64400
11,520+
$0.61180
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 3522-12-0101-99 male pin header by CNC Tech offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose CNC Tech for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.146" (3.70mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: -
- Current Rating (Amps): 1A
- Voltage Rating: 500VAC
Related Products
TE Connectivity AMP Connectors
1-2842236-6
Molex
0702800757
Molex
0010845120
Molex
35312-0460
Samtec Inc.
FTSH-121-04-L-DV-A-P-TR
Samtec Inc.
TSM-106-01-SM-SV
Samtec Inc.
EHT-125-01-SM-D-SM
Amphenol ICC (FCI)
67996-120HLF
Molex

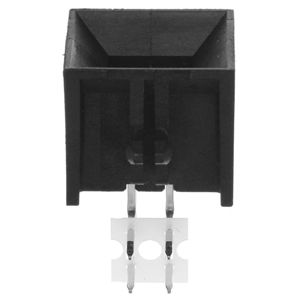

0444280401
