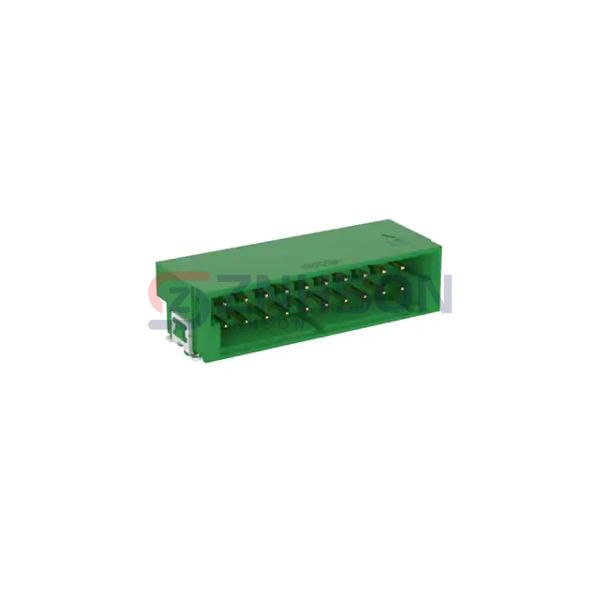

374319

TE Connectivity Erni

Manufacturer

TE Connectivity Erni

Description:

MAXIBR M 20POS RA SMT GRN

Datasheet:

374319 Datasheet

$14.97

Available to order

Reference Price (USD)

$14.97000

500+

$14.8203

1000+

$14.6706

1500+

$14.5209

2000+

$14.3712

2500+

$14.2215

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The 374319 by TE Connectivity Erni is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 374319 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. TE Connectivity Erni ensures each connector meets rigorous quality standards for global compliance.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 20
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Cable/Wire
Shrouding: Shrouded - 4 Wall
Mounting Type: Surface Mount, Right Angle
Termination: Solder
Fastening Type: Latch Holder
Contact Length - Mating: 0.161" (4.09mm)
Contact Length - Post: -
Overall Contact Length: -
Insulation Height: 0.315" (8.00mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: -
Contact Finish - Post: Tin
Contact Material: Copper Alloy
Insulation Material: Liquid Crystal Polymer (LCP)
Features: Board Guide, Solder Retention
Operating Temperature: -55°C ~ 150°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Green
Current Rating (Amps): 12A per Contact
Voltage Rating: -
