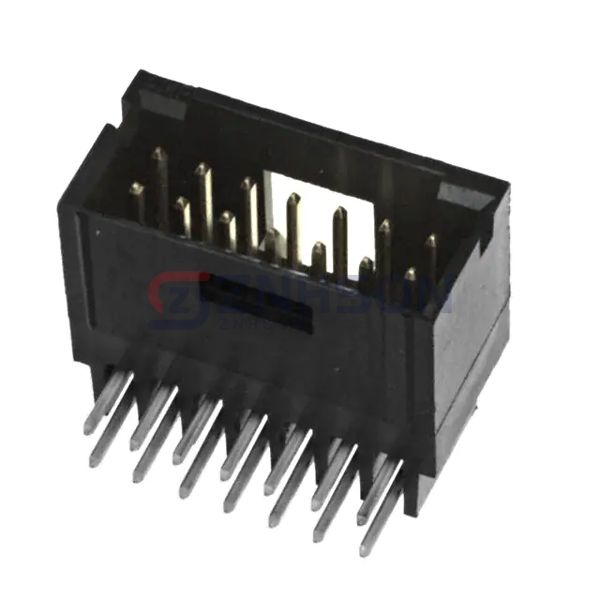

5-103166-5

TE Connectivity AMP Connectors

Manufacturer

TE Connectivity AMP Connectors

Description:

CONN HEADER R/A 14POS 2.54MM

Datasheet:

5-103166-5 Datasheet

$4.73

Available to order

Reference Price (USD)

$3.52000

10+

$3.37400

120+

$2.81208

600+

$2.39027

1,080+

$2.03876

5,040+

$1.82785

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Enhance your electronic assemblies with the 5-103166-5 rectangular connector header from TE Connectivity AMP Connectors. These male pin connectors are built for high-performance applications, offering excellent signal integrity and durability. Suitable for use in automotive, medical, and telecommunications industries, the 5-103166-5 meets the highest industry standards. TE Connectivity AMP Connectors provides connectors that ensure long-term reliability and performance.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 14
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Detent Lock
Contact Length - Mating: 0.318" (8.08mm)
Contact Length - Post: 0.135" (3.43mm)
Overall Contact Length: -
Insulation Height: 0.400" (10.16mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 30.0µin (0.76µm)
Contact Finish - Post: Tin
Contact Material: Phosphor Bronze
Insulation Material: Thermoplastic
Features: -
Operating Temperature: -65°C ~ 105°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 3A
Voltage Rating: -

Shopping cart

5-103166-5

Reference Price (USD)

Specifications

Related Products

TMM-130-03-G-D

77311-418-18LF

68002-201HLF

2-640456-0

3020-06-0300-00

PEC16SAEN

TSW-108-08-T-S

20021221-00020T1LF

0039306167

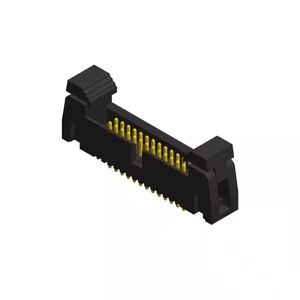

3210-26-001-12-00
