57102-G06-20LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

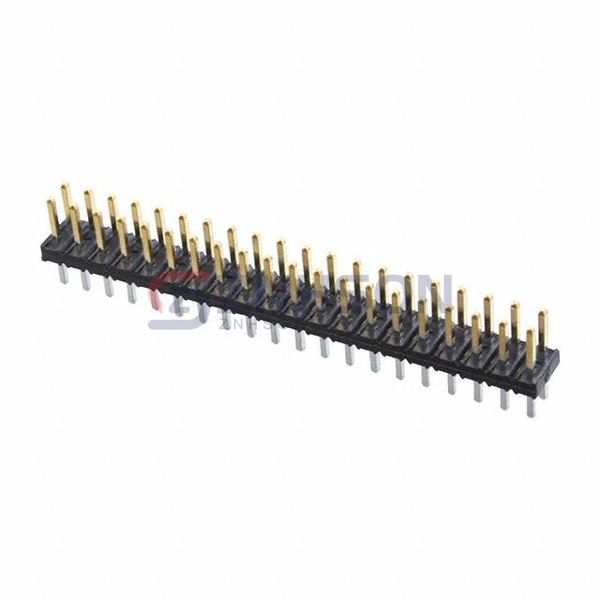

CONN HEADER VERT 40POS 2MM
$5.03
Available to order
Reference Price (USD)
1+
$3.98000
10+
$3.81800
100+
$3.18200
500+
$2.70470
1,000+
$2.30695
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 57102-G06-20LF by Amphenol ICC (FCI) is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Amphenol ICC (FCI) delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.098" (2.50mm)
- Overall Contact Length: 0.315" (8.00mm)
- Insulation Height: 0.059" (1.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A (AC/DC)
- Voltage Rating: 200V (AC/DC)
