61202621621
Würth Elektronik
Würth Elektronik

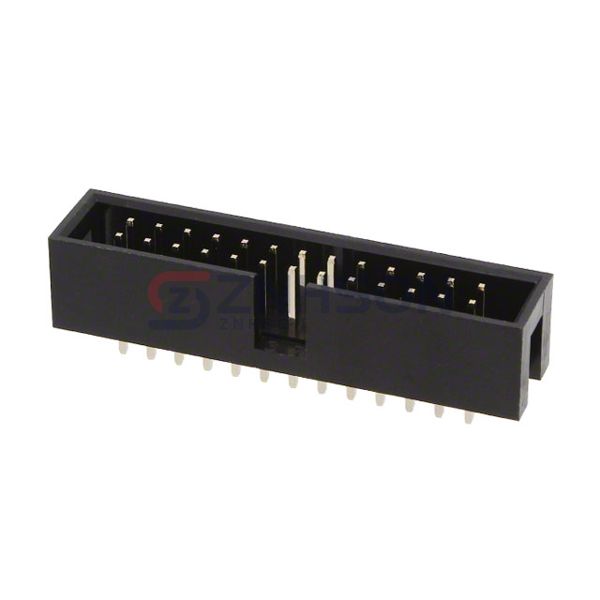

CONN HEADER VERT 26POS 2.54MM
$1.11
Available to order
Reference Price (USD)
1+
$1.04000
10+
$1.01900
50+
$0.94100
100+
$0.84300
500+
$0.74500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the 61202621621 rectangular connector header from Würth Elektronik. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the 61202621621 is perfect for automotive, industrial, and consumer electronics. Würth Elektronik ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.358" (9.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: -
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot
- Operating Temperature: -40°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 250V
