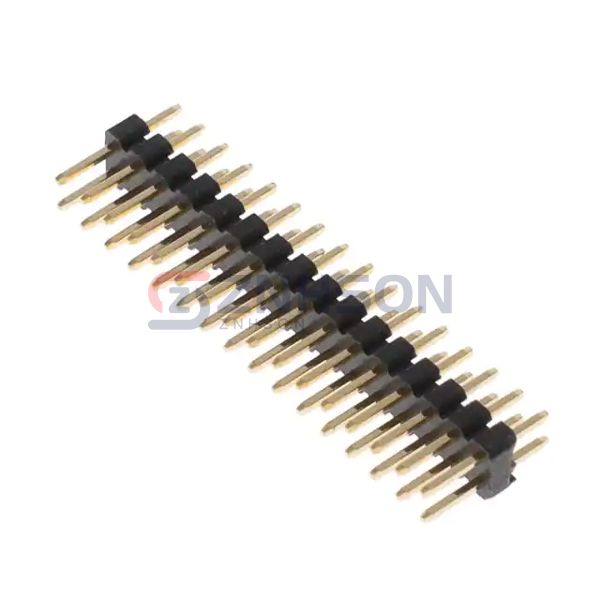

62003221121
Würth Elektronik
Würth Elektronik
WR-PHD 2.00 MM DUAL PIN HEADER
$1.32
Available to order
Reference Price (USD)
1+
$1.32000
500+
$1.3068
1000+
$1.2936
1500+
$1.2804
2000+
$1.2672
2500+
$1.254
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 62003221121 by Würth Elektronik is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Würth Elektronik delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 32
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: 0.106" (2.70mm)
- Overall Contact Length: 0.343" (8.70mm)
- Insulation Height: 0.079" (2.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 200VAC
