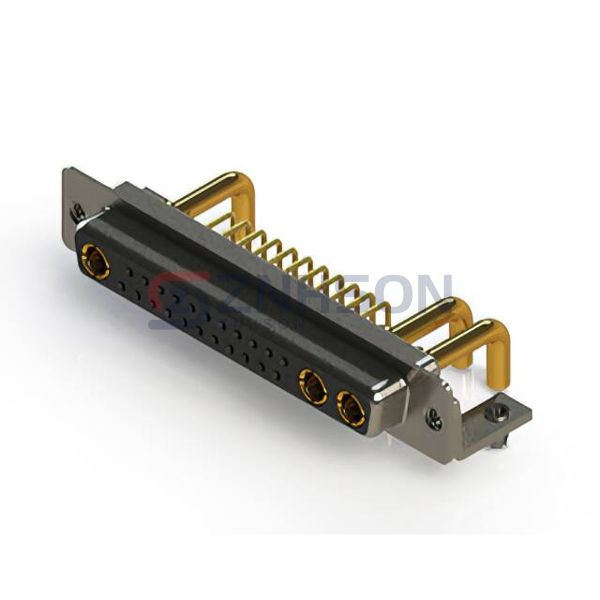

630-25W3250-3NB
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 25POS R/A SLDR
$13.03
Available to order
Reference Price (USD)
1+
$13.02520
500+
$12.894948
1000+
$12.764696
1500+
$12.634444
2000+
$12.504192
2500+
$12.37394
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 630-25W3250-3NB redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 630-25W3250-3NB is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 25 (22 + 3 Power)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 4 (DC, C) - 25W3
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 30A
- Backset Spacing: 0.370" (9.40mm)
- Features: Board Lock, Mounting Brackets
Related Products
EDAC Inc.
630-24W7240-5N6
EDAC Inc.
630-8W8-240-7N2
EDAC Inc.
625-009-662-030
EDAC Inc.
628-25W3624-3TB
EDAC Inc.
662-009-364-041
EDAC Inc.
630-3W3-640-1TC
PEI-Genesis
DD15M320000/AA
EDAC Inc.
638-026-631-257
EDAC Inc.

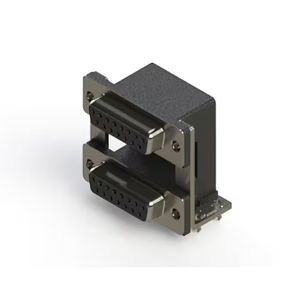

662-015-364-03A
