686110183522
Würth Elektronik
Würth Elektronik

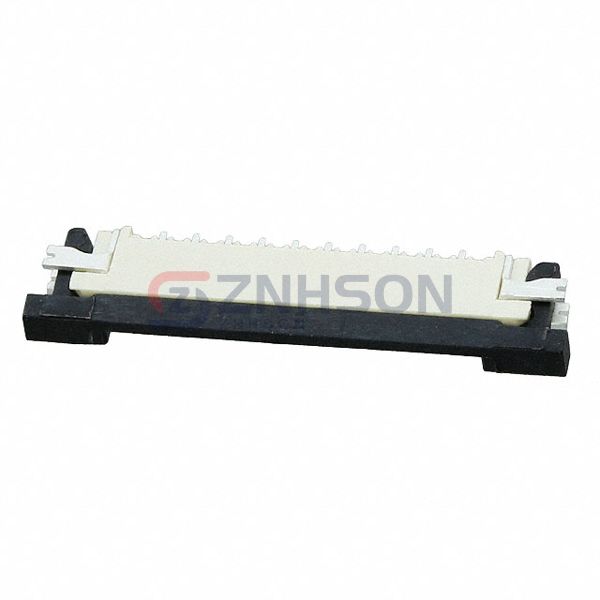

CONN FFC BTM 10POS 1MM SMD R/A
$1.76
Available to order
Reference Price (USD)
4,000+
$0.91801
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with Würth Elektronik's 686110183522 FFC/FPC Connectors the epitome of precision and adaptability. These connectors feature a unique combination of bend resistance, high pin density, and corrosion-resistant materials, ensuring longevity in dynamic environments. The 686110183522 is particularly suited for AR/VR headsets, automotive infotainment, and military communications. With Würth Elektronik's patented contact technology, signal loss is minimized even at high frequencies. Whether for prototyping or mass production, 686110183522 offers a scalable solution for all your flexible connection requirements.
Specifications
- Product Status: Active
- Flat Flex Type: FFC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 10
- Pitch: 0.039" (1.00mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.047" (1.20mm)
- Locking Feature: Flip Lock
- Cable End Type: Straight
- Contact Material: Phosphor Bronze
- Contact Finish: Tin
- Housing Material: Liquid Crystal Polymer (LCP)
- Actuator Material: Polyamide (PA6T), Nylon 6T
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: -
- Operating Temperature: -25°C ~ 85°C
- Material Flammability Rating: UL94 V-0
