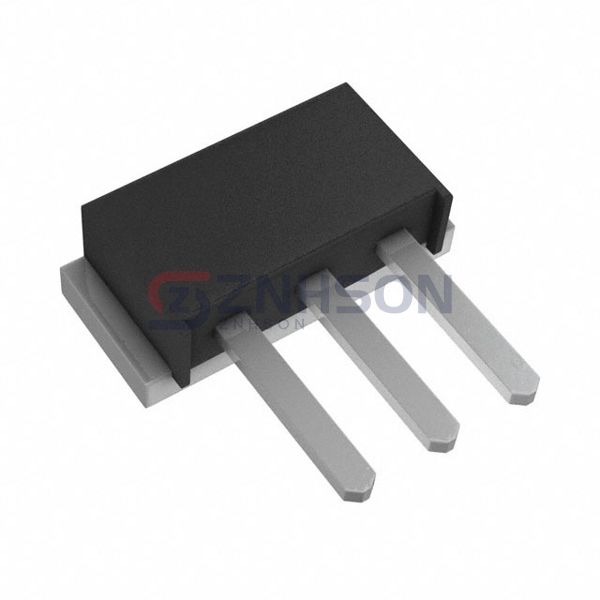

69CNQ150SM
SMC Diode Solutions
SMC Diode Solutions
DIODE SCHOTTKY 150V 30A PRM3-SM
$19.93
Available to order
Reference Price (USD)
48+
$21.03125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 69CNQ150SM rectifier array from SMC Diode Solutions redefines efficiency in the Diodes - Rectifiers - Arrays classification. Its optimized chip geometry enables higher surge withstand capability, critical for automotive alternators and arc suppression circuits. This product shines in three-phase rectification and snubber networks, offering aerospace-grade reliability. SMC Diode Solutions's precision manufacturing ensures each 69CNQ150SM meets stringent quality standards for mission-critical applications.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 150 V
- Current - Average Rectified (Io) (per Diode): 30A
- Voltage - Forward (Vf) (Max) @ If: 870 mV @ 30 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 1.5 mA @ 150 V
- Operating Temperature - Junction: -55°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: PRM3-SM
- Supplier Device Package: PRM3-SM
