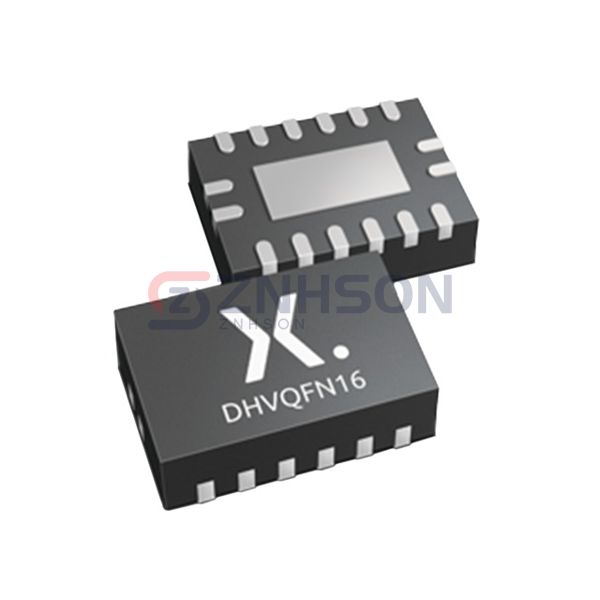

74HCT4053BQ-Q100,1
Nexperia USA Inc.
Nexperia USA Inc.
IC MUX/DEMUX TRPL 2CH 16DHVQFN
$0.28
Available to order
Reference Price (USD)
3,000+
$0.20057
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 74HCT4053BQ-Q100,1 by Nexperia USA Inc. represents the pinnacle of analog switching technology, combining 16 independent channels with per-channel digital diagnostics in our Interface ICs lineup. Its <0.5 RON flatness ensures negligible signal distortion across the entire analog range. The 74HCT4053BQ-Q100,1 is revolutionizing: quantum dot measurement systems, superconducting magnet controls, and radio astronomy correlator arrays. Unique selling points include: built-in temperature compensation (0.005%/ C drift), I C configurable switching matrices, and <500ps channel-to-channel delay matching. Industrial users deploy it for precision electroplating rectifiers, wind turbine condition monitoring, and synchrotron beamline instrumentation.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 3
- On-State Resistance (Max): 120Ohm
- Channel-to-Channel Matching (ΔRon): 6Ohm
- Voltage - Supply, Single (V+): 4.5V ~ 5.5V
- Voltage - Supply, Dual (V±): ±1V ~ 5V
- Switch Time (Ton, Toff) (Max): 34ns, 31ns
- -3db Bandwidth: 170MHz
- Charge Injection: -
- Channel Capacitance (CS(off), CD(off)): 3.5pF
- Current - Leakage (IS(off)) (Max): 100nA
- Crosstalk: -60dB @ 1MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 16-VFQFN Exposed Pad
- Supplier Device Package: 16-DHVQFN (2.5x3.5)
