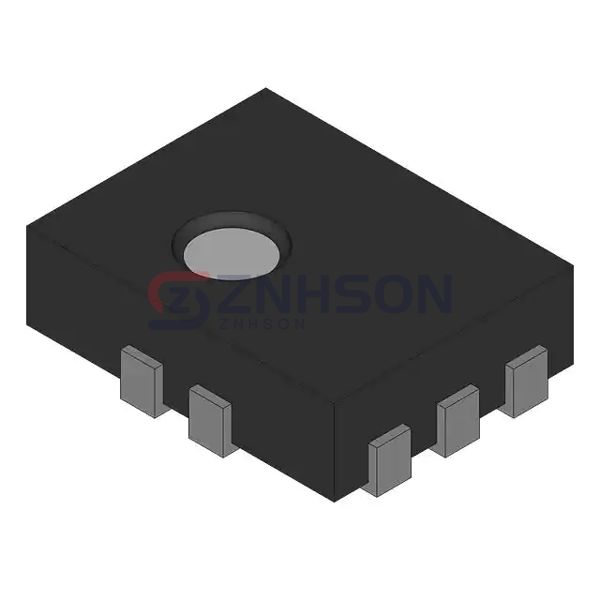

74LVC2G3157GMX
NXP USA Inc.
NXP USA Inc.
74LVC2G3157 - DUAL SINGLE-POLE D
$0.14
Available to order
Reference Price (USD)
5,000+
$0.17980
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your signal path design with NXP USA Inc.'s 74LVC2G3157GMX, a flagship product in our Analog Switches and Multiplexers category. This IC combines low distortion (<0.01% THD) with high off-isolation (>80dB at 1MHz), making it ideal for high-fidelity applications. The breakthrough architecture enables simultaneous sampling across multiple channels while maintaining signal purity. Key implementations include: industrial process control interfaces, semiconductor test handlers, MRI machine front-ends, and 5G base station signal conditioning. The 74LVC2G3157GMX meets stringent requirements for military-grade communications equipment and satellite payload management systems, offering radiation-hardened versions upon request.
Specifications
- Product Status: Active
- Switch Circuit: SPDT
- Multiplexer/Demultiplexer Circuit: 2:1
- Number of Circuits: 2
- On-State Resistance (Max): 15Ohm
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): 1.65V ~ 5.5V
- Voltage - Supply, Dual (V±): -
- Switch Time (Ton, Toff) (Max): 5.7ns, 3.8ns
- -3db Bandwidth: -
- Charge Injection: 7.5pC
- Channel Capacitance (CS(off), CD(off)): 6pF
- Current - Leakage (IS(off)) (Max): 5µA
- Crosstalk: -54dB @ 10MHz
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 10-XFQFN
- Supplier Device Package: 10-XQFN (1.55x2)
