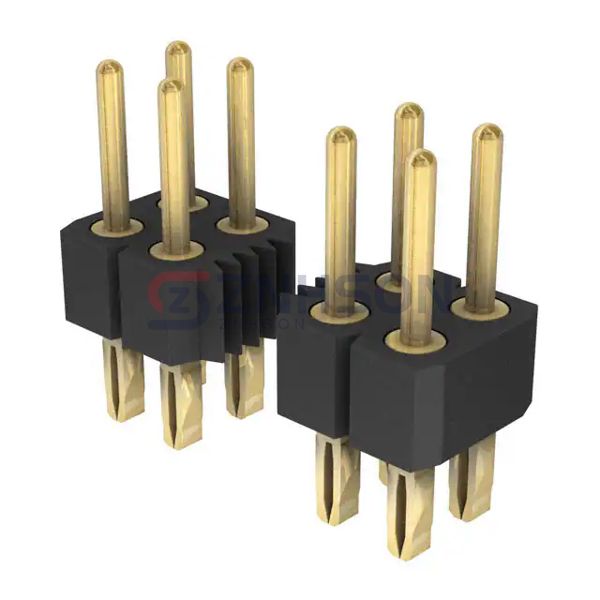

802-10-072-65-001101

Preci-Dip

Manufacturer

Preci-Dip

Description:

CONN HEADER VERT 72POS 2.54MM

Datasheet:

802-10-072-65-001101 Datasheet

$15.69

Available to order

Reference Price (USD)

$13.03000

10+

$11.84700

100+

$10.06970

500+

$8.58886

1,000+

$7.87806

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The 802-10-072-65-001101 by Preci-Dip is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 802-10-072-65-001101 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Preci-Dip ensures each connector meets rigorous quality standards for global compliance.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 72
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Through Hole
Termination: Press-Fit, Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.191" (4.85mm)
Contact Length - Post: 0.110" (2.79mm)
Overall Contact Length: 0.427" (10.85mm)
Insulation Height: 0.110" (2.79mm)
Contact Shape: Circular
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Material: Bronze
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features: -
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 3A
Voltage Rating: 150VDC
