81050-660C07-RB
3M
3M

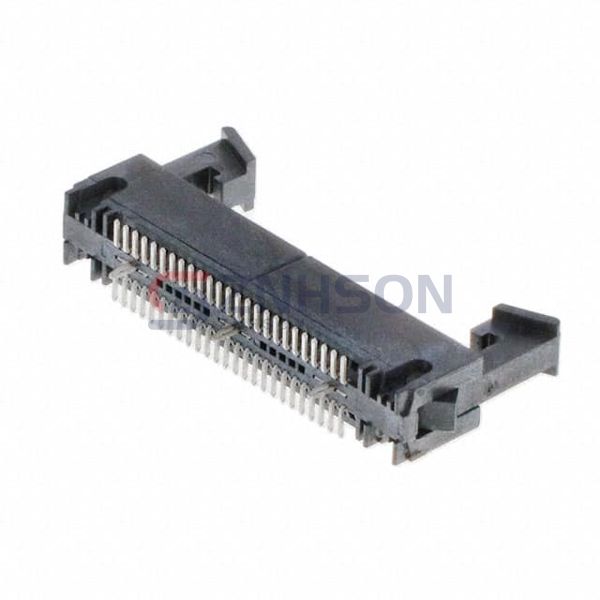

CONN HEADER SMD 50POS 1.27MM
$21.52
Available to order
Reference Price (USD)
1+
$16.35000
10+
$15.17900
100+
$11.67600
500+
$10.66408
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 81050-660C07-RB rectangular connector header from 3M, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 81050-660C07-RB adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. 3M guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Long
- Contact Length - Mating: 0.140" (3.56mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.405" (10.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Retention Clips
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 0.75A
- Voltage Rating: -
