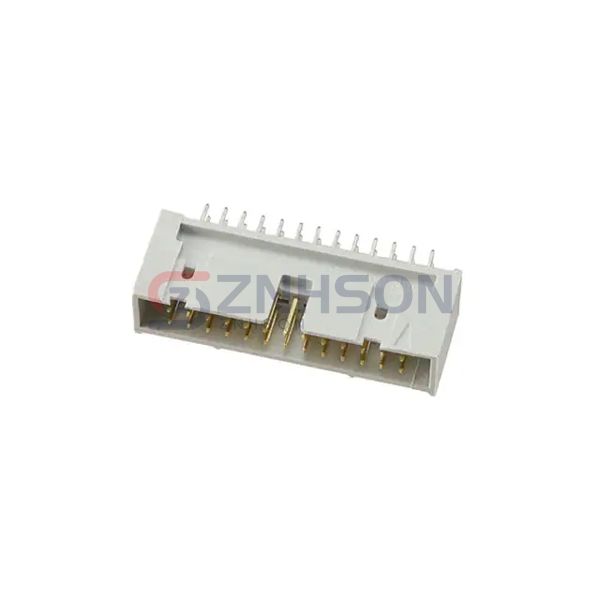

86130261014345E1LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 26POS 2.54MM
$1.00
Available to order
Reference Price (USD)
1+
$0.74000
10+
$0.65000
126+
$0.56103
504+
$0.45901
1,008+
$0.40800
5,040+
$0.35700
10,080+
$0.33915
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 86130261014345E1LF from Amphenol ICC (FCI) is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 86130261014345E1LF offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Amphenol ICC (FCI) for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.171" (4.35mm)
- Overall Contact Length: -
- Insulation Height: 0.557" (14.15mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold or Gold-Palladium
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): -
- Voltage Rating: 250V
