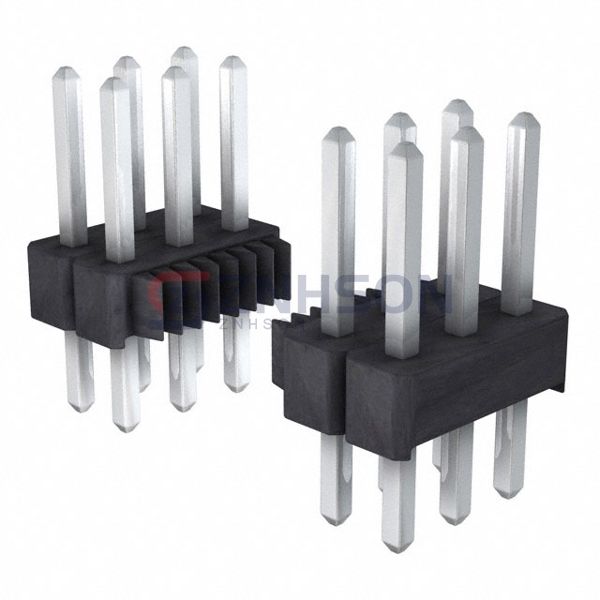

894-80-033-10-001101
Preci-Dip
Preci-Dip
CONN HEADER VERT 33POS 2.54MM
$1.28
Available to order
Reference Price (USD)
470+
$1.02840
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the 894-80-033-10-001101 rectangular connector header from Preci-Dip, a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the 894-80-033-10-001101 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Preci-Dip guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 33
- Number of Rows: 3
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.236" (6.00mm)
- Contact Length - Post: 0.122" (3.10mm)
- Overall Contact Length: 0.458" (11.64mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 150VDC
Related Products
Preci-Dip
850-10-034-10-001101
TE Connectivity AMP Connectors
3-1761608-6
Samtec Inc.
TMM-102-03-F-D
TE Connectivity AMP Connectors
1-292161-2
Sullins Connector Solutions
PEC06DAGN
Samtec Inc.
MTLW-103-23-S-S-260
Samtec Inc.
TSM-105-01-T-SV-LC
Hirose Electric Co Ltd
DF1BZ-15P-2.5DSA
Sullins Connector Solutions

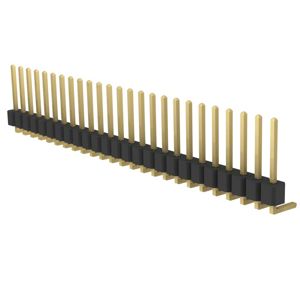

PRPC025SGAN-M71RC
