90023-AS
Preci-Dip
Preci-Dip

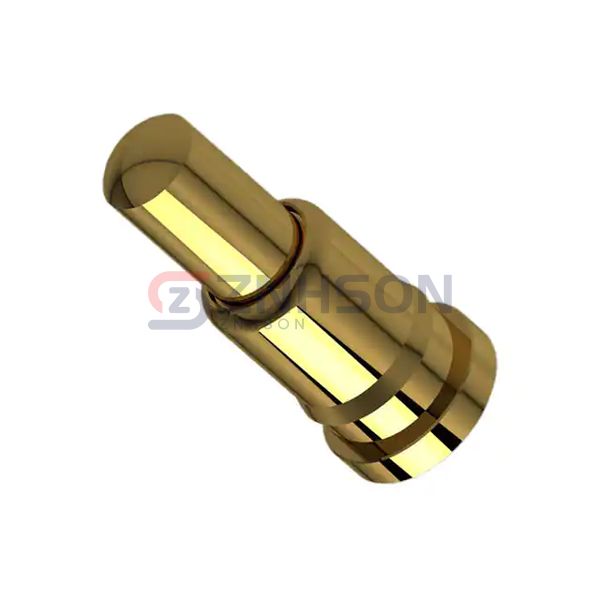

CONTACT SPRING LOADED SMD GOLD
$0.78
Available to order
Reference Price (USD)
1+
$0.60000
10+
$0.56500
25+
$0.50840
50+
$0.45180
100+
$0.43300
250+
$0.39536
500+
$0.37652
1,000+
$0.31063
2,500+
$0.28239
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 90023-AS by Preci-Dip sets new standards for high-current Spring Loaded Contacts in electric vehicle and energy storage applications. These 30A-rated Pressure Contacts incorporate thermal runaway protection and vibration-damping features critical for EV battery pack monitoring systems. Our specialized Pogo Pin series offers unparalleled safety with built-in current sensors and arc-suppression coatings. Primary applications include grid-scale battery maintenance platforms, hydrogen fuel cell stack testing, and hybrid aircraft power distribution verification. Real-world deployments feature in Formula E diagnostic tools and offshore wind turbine condition monitoring systems. 90023-AS's patented multi-point contact design ensures <2mV voltage drop at maximum load.
Specifications
- Product Status: Active
- Contact Type: Sleeve & Plunger (Pogo Pins)
- Mounting Type: Surface Mount
- Maximum Working Height: 0.177" (4.50mm)
- Recommended Working Height: -
- Minimum Working Height: 0.122" (3.10mm)
- Pad Layout Dimension: Circular - 0.072" (1.83mm)
- Operating Force - Initial: 25.49gf
- Operating Force - Mid Compression: 61.18gf
- Plunger Size: 0.042" (1.07mm) Dia
- Features: -
- Mating Cycles: 40000
- Contact Material: Brass Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 20.0µin (0.51µm)
