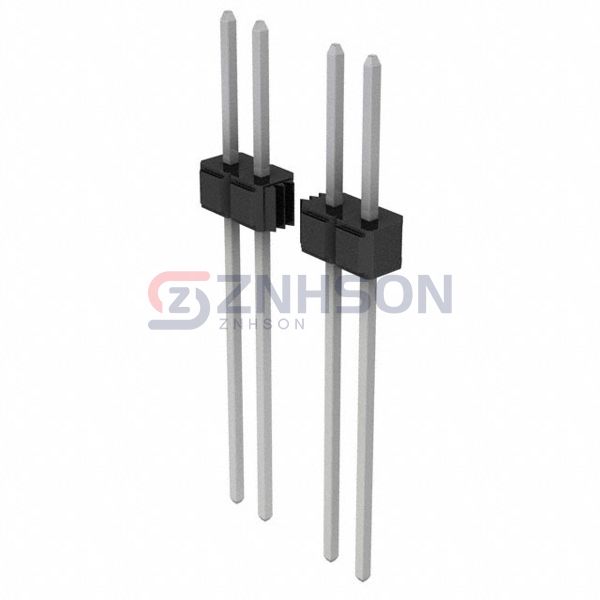

929700-06-16-RK
3M
3M
CONN HEADER VERT 16POS 2.54MM
$1.50
Available to order
Reference Price (USD)
1+
$1.43000
10+
$1.29600
25+
$1.21680
50+
$1.16400
100+
$1.11100
250+
$1.00524
500+
$0.92588
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 929700-06-16-RK rectangular connector header by 3M. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 929700-06-16-RK ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust 3M for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.318" (8.08mm)
- Contact Length - Post: 0.710" (18.03mm)
- Overall Contact Length: 1.128" (28.65mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 200.0µin (5.08µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2.5A
- Voltage Rating: -
Related Products
Molex
0039293106
Preci-Dip
800-80-046-10-001101
Samtec Inc.
TMS-110-01-L-S
Samtec Inc.
TSM-115-04-S-SV
Samtec Inc.

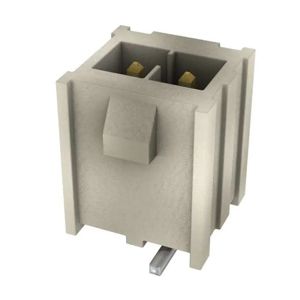

IPL1-102-02-L-S-K
Samtec Inc.
TSW-149-14-S-S
TE Connectivity AMP Connectors

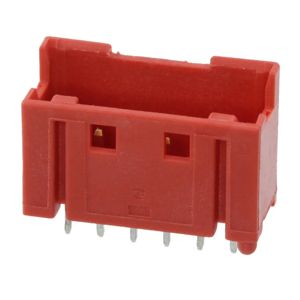

1-1747067-6
Hirose Electric Co Ltd
DF1B-4P-2.5DS(01)
Samtec Inc.

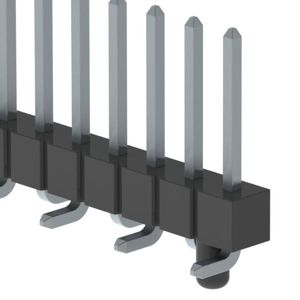

TSM-112-02-T-SV-A-P-TR
